50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton

Name: 50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WL-121
Price: 44.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Certification: OIML

Model Number: WL-121

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                1000kg Load Cell, Analog Load Cell, Load Cell 1 Ton


Nominal Load:	50/100/200/300/500/1000kg	Type:	Analog Type
Non-linearity:	0.017%F.S.	Repeatability:	0.01%F.S.
Rated Output:	2.0±0.002mV/V	Zero Balance:	1%mV/V
Theory:	Strain Gauge	Operation Temp. Range:	-40~65℃

Nominal Load:	50/100/200/300/500/1000kg
Type:	Analog Type
Non-linearity:	0.017%F.S.
Repeatability:	0.01%F.S.
Rated Output:	2.0±0.002mV/V
Zero Balance:	1%mV/V
Theory:	Strain Gauge
Operation Temp. Range:	-40~65℃

50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton

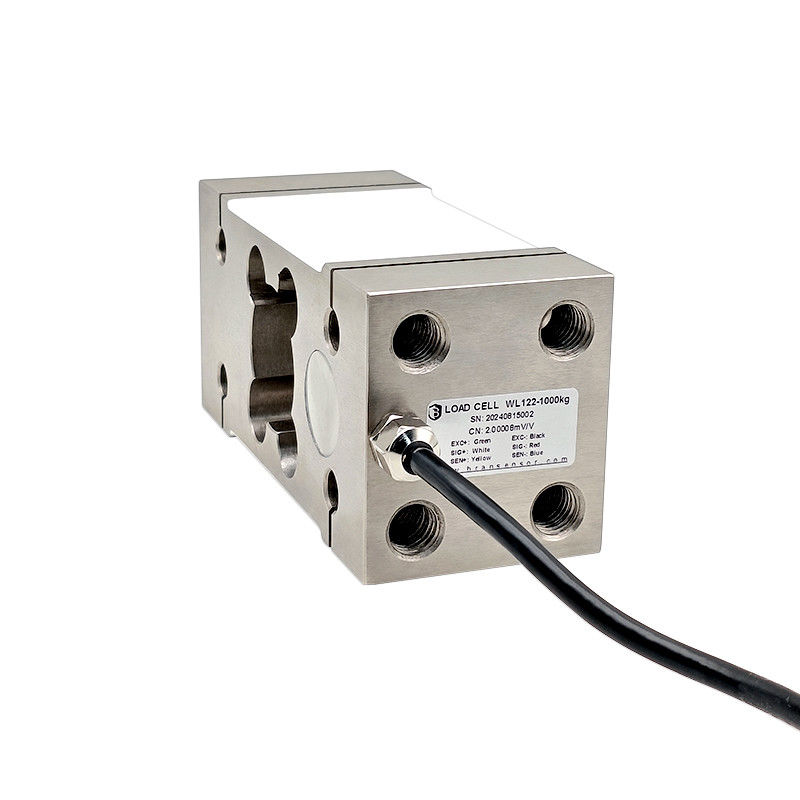

Robust Bending Beam Load Cell From 50kg To 1000kg Weighing Scales - WL-121

Features&Applications:

Bending beam load cell
17-4PH Stainless steel construction
Quadrilateral deviation compensated
Waterproof, chemicalproof feature
High accuracy and strong stability
Good long term stability
Easy to install and replace; maintenance-free
Maximum platformsize up to 500mm*500mm,600mm*800mm,800mm*1000mm
Different cable lengths and dimensions optional
Mainly used for food,beverage,pharmaceutical and other special fields, and can also be used for belt, platform and other electrical weighing devices.

Specifications:

Capacity	50/100/200/300/500/1000kg
Rated output	2.0±0.002mV/V
Combined error	±0.017%F.S.
Zero balance	±1.00%F.S.
Non-linearity	±0.017%F.S.
Hysteresis	±0.017%F.S.
Repeatability	±0.01%F.S.
Creep (30min)	±0.017%F.S.
Temperature effect on sensitivity	±0.002%F.S./10℃
Temperature effect on zero	±0.002%F.S./10℃
Input resistance	380±20Ω
Output resistance	350±10Ω
Insulation resistance	≥5000MΩ/100VDC
Recommended excitation	5VDC
Maximum excitation	15VDC
Compensated temp. range	-10~40℃
Operation temp. range	-40~65℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
IP class	IP67 (Customizable)
Cable size	Φ6.3×2500mm (Customizable)
Material	Stainless Steel

Dimension(MM):

50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton 0

Load Direction:

50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton 1

Wiring:

50kg To 1000kg Load Cell Weighing Scale Analog Load Cell 1 Ton 2

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
