Digital Weight Indicator Transmitter IP66 Weighing Transmitter

IP66 RS232/RS485 Weight Digital Transmitter With Stainless Steel Housing-HK100

Product Description:

Using the industry-standard Modbus-RTU communication protocol, the HK100 digital transmitter transforms the load cell's micro-voltage signal (mV) into an RS232 or RS485.Four strain gauge load cells are intended to be connected to the HK100 transmitter. It comes with an IP 66-rated stainless steel housing.The excellent anti-interference and 120 times/sec AD acquisition rate of the weighing indicator are its distinguishing features. Apart from that, it was capable of simultaneously converting and transmitting four weight signals. The transmitter is perfect for non-explosion-proof chemical and pharmaceutical reactor weighing control systems, digital platform scales, mixing station weighing display control systems, and other static weighing control systems.

Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure

providing the best solution, the product can be adapted to meet customer requirements.

Features:

• 120 times per second real-time acquisition frequency with strong interference rejection.
• Assist in customized communication protocols.
• Rich output interface: RS232, RS485 support Modbus RTU protocol and support up to 63 node addresses.
• Suitable for various static ,high precision,multi-node weighing control sites.

Specifications:

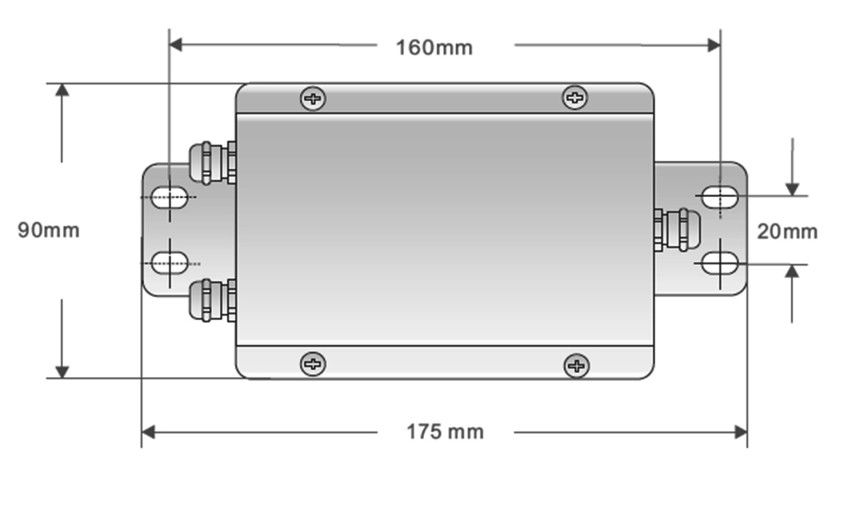

Dimensions(mm):
