6 Digit Signal Weight Transmitter 4 20ma Loadcell Transmitter

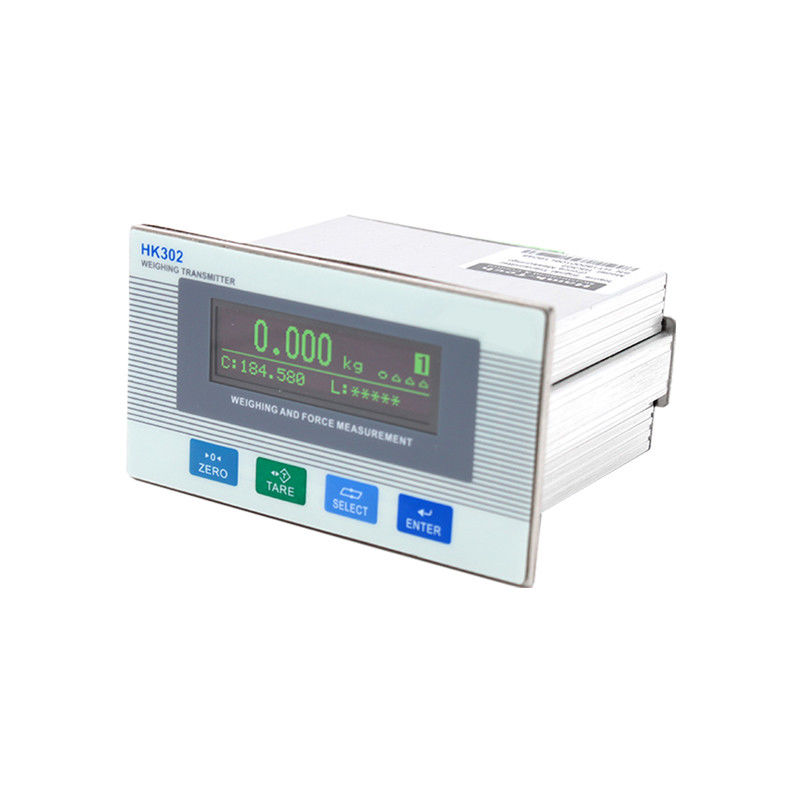

6-Digit Signal Transmitter for High Precision Weighing Application (HK-302)

Product Description:

The HK302 weighing indicator is a control terminal oriented to the field of high precision weighing application and automation controlling.This instrument has a high and low position relay output function,which outputs signals to PLC and DCS systems to realize the control of valve switches. The HK302 signal transmitter provides hign anti-interference and It can successfully solve the interference of the instrument when the inter com is on-site calibration.It offers rich output interface: RS232,RS485 support Modbus RTU protocol. The HK302 weighing terminal is suitable for various medium and high speed force measurement fields,such as automatic servo presses,automatic grinding machines.


Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure
providing the best solution, the single point load cell can be adapted to meet customer requirements.


Features:

1.6-digit green digital tube, full Chinese menu
2.Rich output interface: RS232, RS485 support Modbus RTU protocol (customizable output protocol)
3. Analog output interface:0~5V, 0~10V, -5V~+5V, -10V~+ 10V, 0~20 mA, 4-20mA, 0-24mA
4.1000 times / second AD acquisition , the peak value is maintained
5.IO relay output (with multiple logic output methods customizable )
6.Modifying the maximum range,decimal point position,and minimum division value
7.Simple operation and stable performance


Specifications:

Screen and Keyboard:

Interface:

Dimensions(mm):

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
