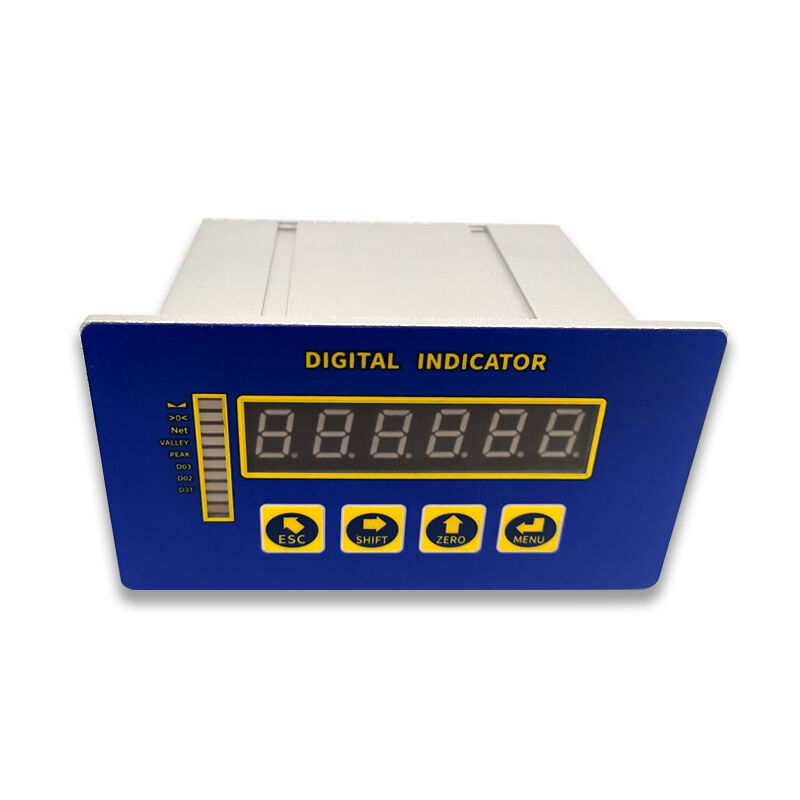

Isolated Power Weighing Transmitter With 4/6-Wire Load Cell Support DT301

Name: Isolated Power Weighing Transmitter With 4/6-Wire Load Cell Support DT301
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: DT301
Price: 78.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: DT301

Document: DT301 Signal Transmitter-BR...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 300pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                isolated weighing transmitter with load cell support, 4/6-wire load cell weighing transmitter, DT301 isolated power weighing transmitter


Display:	6-digit LED Display, Height 0.32‘’	Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform	Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~4 Load Cells (350Ω)	Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:	Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	6-1600Hz	Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W	Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing	I/O:	2 Inputs And 3 Outputs
Material:	Aluminum Alloy Housing	IP Class:	IP20

Display:	6-digit LED Display, Height 0.32‘’
Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform
Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~4 Load Cells (350Ω)
Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:
Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	6-1600Hz
Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W
Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing
I/O:	2 Inputs And 3 Outputs
Material:	Aluminum Alloy Housing
IP Class:	IP20

Isolated Power Weighing Transmitter With 4/6-Wire Load Cell Support DT301

Features& Applications

- Panel-mounted design for convenient operation.
- Supports weight-free calibration.
- Compatible with both 6-wire and 4-wire load cell connections.
- Operated via 4 touch buttons for simple setup and adjustment.
- Analog outputs: ±10V and 4–20mA.
- Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.
- LED display shows real-time weight, peak values, and other data.
- Power supply and signal isolation enhances anti-interference and ensures stable data acquisition/output.
- Ideal for process weighing systems.
- Suitable for process automation and control applications.

Dimensions (mm)

Isolated Power Weighing Transmitter With 4/6-Wire Load Cell Support DT301 0

Wiring Code

Isolated Power Weighing Transmitter With 4/6-Wire Load Cell Support DT301 1

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
