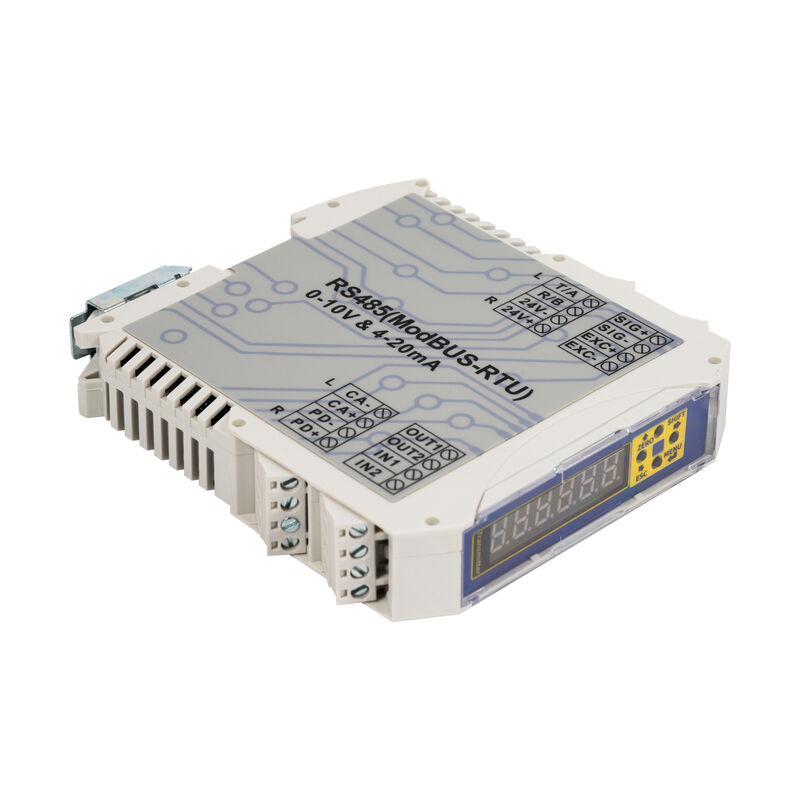

Weighing Transmitter With Touch Interface For Force Measurement Systems DT301PZ

Name: Weighing Transmitter With Touch Interface For Force Measurement Systems DT301PZ
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: DT301PZ
Price: 78.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: DT301PZ

Document: DT301PZ Signal Transmitter-...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 300pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                touch interface weighing transmitter, force measurement weighing transmitter, DT301PZ weighing transmitter


Display:	6-digit LED Display, Height 0.32‘’	Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform	Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~4 Load Cells (350Ω)	Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:	Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	6-1600Hz	Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W	Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing	I/O:	2 Inputs And 3 Outputs
Material:	Plastic Housing	IP Class:	IP20

Display:	6-digit LED Display, Height 0.32‘’
Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform
Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~4 Load Cells (350Ω)
Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:
Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	6-1600Hz
Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W
Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing
I/O:	2 Inputs And 3 Outputs
Material:	Plastic Housing
IP Class:	IP20

Weighing Transmitter With Touch Interface For Force Measurement Systems DT301PZ

Features& Applications

- Thin and lightweight design with standard 35mm DIN-rail installation.
- Equipped with a display screen and 4 touch buttons for easy operation and configuration.
- Offers multiple analog outputs: 0–10V, ±10V, 4–20mA, 0–20mA, 0–10mA.
- Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.
- Includes 2 inputs and 2 outputs for alarm or control functions (e.g., valves, gates).
- Powered by DC24V for stable and secure performance.
- High precision, reliable stability, and strong anti-interference capability.
- Primarily used in applications requiring conversion of force measurement signals into digital communication signals or standard analog outputs.
- Suitable for simple force measurement control and monitoring tasks.

Dimensions (mm)

Weighing Transmitter With Touch Interface For Force Measurement Systems DT301PZ 0

Wiring Code

Weighing Transmitter With Touch Interface For Force Measurement Systems DT301PZ 1

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
