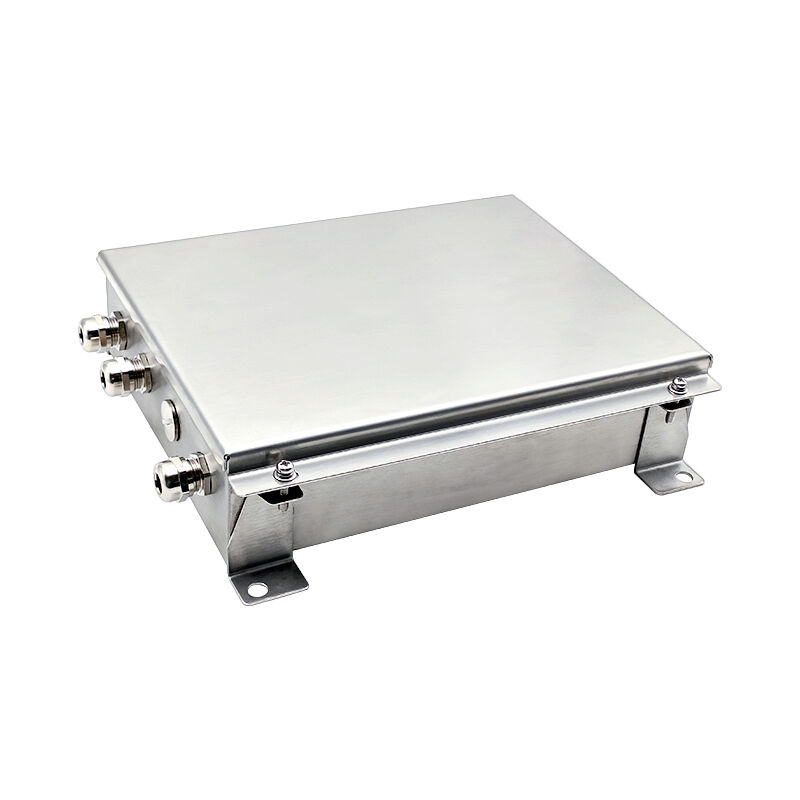

Industrial Weighing Transmitter with 4-Channel Input & Diagnostics HK160

Name: Industrial Weighing Transmitter with 4-Channel Input & Diagnostics HK160
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: HK160
Price: 78.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: HK160

Document: HK160 Four-Channel Load Cel...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 300pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Industrial weighing transmitter with diagnostics, 4-channel weighing transmitter HK160, Weighing transmitter with input diagnostics


Housing Material:	SUS304 Stainless Steel Housing	Dimension (LWH):	233mmx201mmx55mm
IP Protection:	IP65	Operating Temperature:	Temperature:-10~40 °C(14~104°F)Humidity:10%~95%; Non-condensing
Power Supply:	DC24V+10%, Power<10W	Display:	0.96-inch 128*64 Full-dot OLED Display,support Chinese And English Display Menu
Keyboard:	Supports 4-digit Mechanical Mini Buttons.which Can Be Used For Parameter Settings,weighing Calibration, Communication Settings, Etc.	Display Range:	Maximum Display Division Value Is 100000
Input Signal:	0~3mV/V Differential Voltage Signal(Resistance Strain Gauge Load Cell)	Maximum Drive Ability:	Drive Up To 1~6 Load Cells
A/D Conversion Rate:	200Hz	Excitation Voltage:	5VDC
Minimum Input:	0.6μV/d	Communication Port:	RS-232.Baud Rate4800-115.200RS-485.Baud Rate4800-115.200
Com. Protocol:	MODBUS RTU, Continue Type, Command Output Format	Optional:	Supports Extended RF Wireless Function,WIF]output4~20mA Or 0~10V Analog Output

Housing Material:	SUS304 Stainless Steel Housing
Dimension (LWH):	233mmx201mmx55mm
IP Protection:	IP65
Operating Temperature:	Temperature:-10~40 °C(14~104°F)Humidity:10%~95%; Non-condensing
Power Supply:	DC24V+10%, Power<10W
Display:	0.96-inch 128*64 Full-dot OLED Display,support Chinese And English Display Menu
Keyboard:	Supports 4-digit Mechanical Mini Buttons.which Can Be Used For Parameter Settings,weighing Calibration, Communication Settings, Etc.
Display Range:	Maximum Display Division Value Is 100000
Input Signal:	0~3mV/V Differential Voltage Signal(Resistance Strain Gauge Load Cell)
Maximum Drive Ability:	Drive Up To 1~6 Load Cells
A/D Conversion Rate:	200Hz
Excitation Voltage:	5VDC
Minimum Input:	0.6μV/d
Communication Port:	RS-232.Baud Rate4800-115.200RS-485.Baud Rate4800-115.200
Com. Protocol:	MODBUS RTU, Continue Type, Command Output Format
Optional:	Supports Extended RF Wireless Function,WIF]output4~20mA Or 0~10V Analog Output

Industrial Weighing Transmitter with 4-Channel Input & Diagnostics HK160

Features& Applications

1. Constructed with SUS304 stainless steel housing and high-performance components for durability.
2. Equipped with 4 independent AD channels to support individual or combined use of load cells/force sensors.
3. Features 4-channel independent error diagnosis for real-time sensor status monitoring and simplified maintenance.
4. Provides strong anti-interference capability against electrical noise from motors, inverters, and servo controllers.
5. Converts analog signals to RS232/RS485 digital output (Modbus RTU), optionally offers analog output.
6. Supports Modbus RTU protocol, enabling simultaneous upload of 4 data sets to improve transmission efficiency.
7. Ideal for automatic force measurement control and remote weighing applications, such as dispensing machines and digital platform scales.
8. Used in weight-restricted scenarios like cranes, gantry cranes, tower cranes, as well as track weighing and center of gravity detection for subways and high-speed rail.
9. Suitable for automated agricultural and livestock weighing and batching, including quantitative feeding systems.

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.

High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.

The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.

An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.

The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.

A shipping label containing your address and product information will be prominently affixed to the outer carton.

We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
