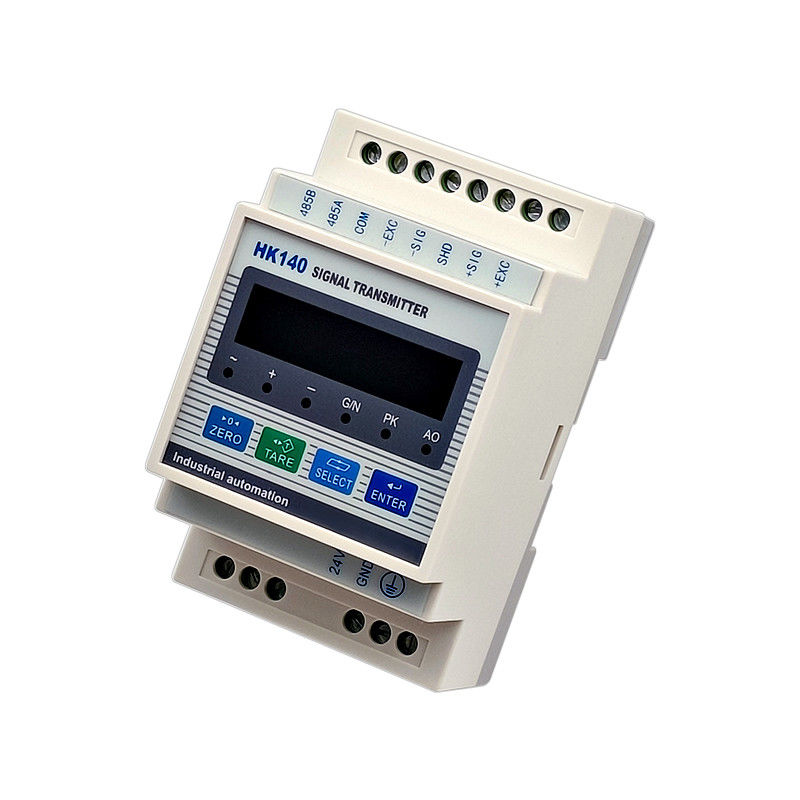

OLED Analog Weight Transmitter High Precision Weight Transmitter

Small Size LED/OLED Display Weighing Transmitter With RS485 Communication Interface -HK140

Product Description:

A range of analog signals are available for the HK140 signal transmitter, which has an RS485 communication interface and supports the Modbus RTU protocol. Additionally, it comes with a standard 35mm guide rail installation that is tiny, simple to use, and easy to set up. Moreover, there are optional OLED and LED displays with a menu in both Chinese and English, and a user-friendly man-machine interface. The four-point, three-segment calibration feature of the HK140 weighing transmitter allows for the correction of the sensor's lack of linearity.The HK140 transmitter has a real-time acquisition rate of 120 times per second and excellent anti-interference capabilities.The HK140 is perfect for a variety of static weighing control systems, including mixing plants and chemical and pharmaceutical reactor weighing control systems. Furthermore, it can be applied to force control systems in the automobile industry and low speed force measurement control systems like static presses.

Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure

providing the best solution, the product can be adapted to meet customer requirements.

Features:

1. LED and OLED version available; small size,easy to install

2. Standard with 35mm guide rail installation

3. Driving up to 1-4 load cells(350Ω)

4. The linear accuracy of analog output can reach between 1/1000-1/10000.

5. Analog output:0~5V,0~10V,－5V～＋5V,－10V～＋10V, 0~20mA,4～20mA,0～24mA

6. Various static weighing control systems, e.g. for mixing plants, non-explosion-proof chemical and pharmaceutical reactor weighing control systems

   Various low speed force measurement control systems, e.g. static presses, process force control in the automotive industry

Specifications:

Screen and Keyboard:

Interface:

Dimensions(mm):

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
