OLED Display Weighing Transmitter Driving 1-6 Load Cell Weight Transmitter

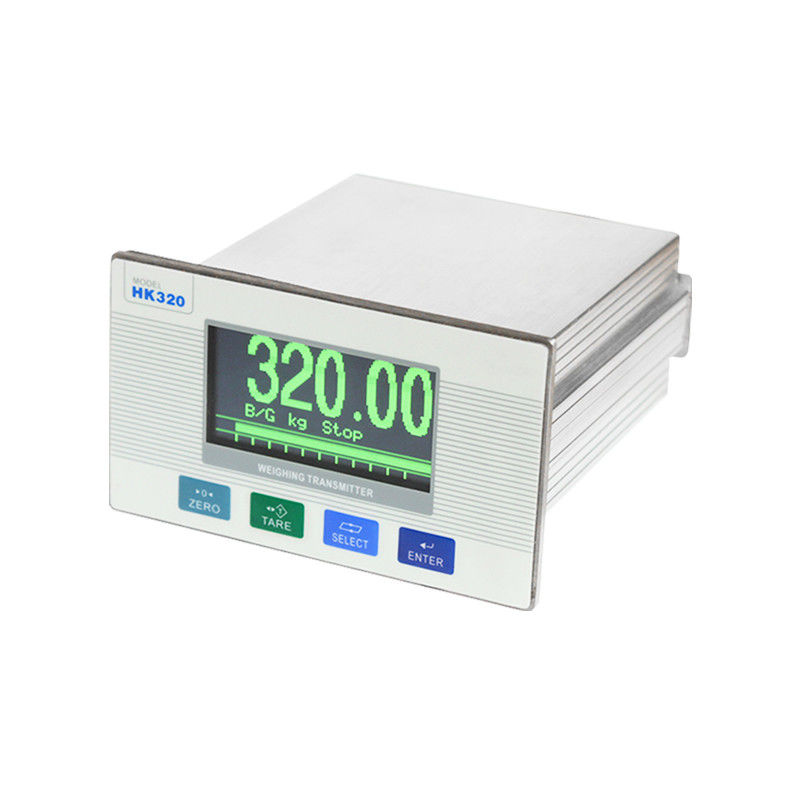

OLED Display Weighing Transmitter Driving 1-6 Load Cells With Stainless Steel Housing-HK320

Product Description:

The HK320 is a weighing controller for batching and blending applictions.It has bright OLED display with IP65 protection and the weighing transmitter can accurately realize the conversion,display and transmission of weight signals. The HK320 is designed for chemical and pharmaceutical ingredients,filling,large tanks in mixing stations,reactors weighing and measuring,high and low material relay output to PLC,DCS system control valve switches.Besides,It features rich logical control functions: single-material incremental/decremental batching;four-material incremental batching;preset point function. The weighing controller is available in panel-type,dust-proof and explosion-proof enclosures(explosion-proof certification:Exd IIB T6 Gb)


Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure
providing the best solution, the single point load cell can be adapted to meet customer requirements.


Features:

1.OLED display with IP 65 protection
2. Accurately realizing the conversion,display and transmission of weight signals
3.Panel-type,dust-proof and explosion-proof enclosures optional,suitable for various installation scenarios
4.Communication Interface:RS232, RS485 support Modbus RTU,expandable Profibus-DP/ProfiNet/Ethernet/IP
expandable Profibus- DP/ProfiNet/Ethernet/IP
5. Analog output:0~5V, 0~10V, -5V~+5V, -10V~+ 10V, 0~20 mA, 4-20mA, 0-24mA
6. AD acquisition is 200 times/sec, and with strong anti-interference performance
7.Supporting weight-free calibration
8.Rich logical control functions: single-material incremental/decremental batching;
four-material incremental batching;preset point function


Specifications:

Screen and Keyboard:

Interface:

Dimensions(mm):

Information:

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
