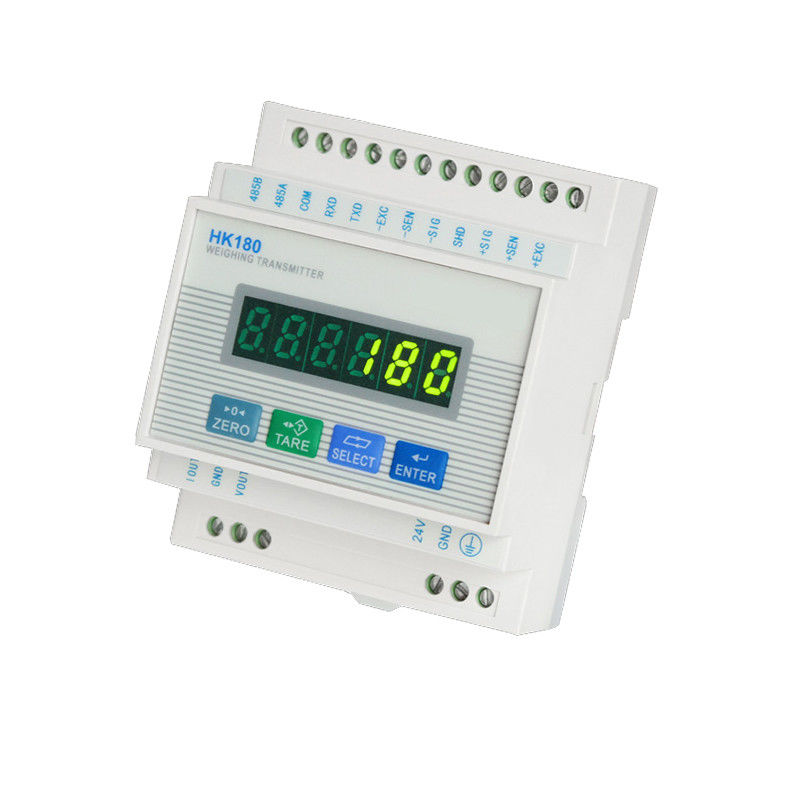

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement

Name: High Accuracy Digital Signal Transmitter For Weighing And Force Measurement
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: HK180
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Certification: OIML, CE

Model Number: HK180

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $155(1-49pcs); $150(50-99pcs)

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: T/T, , L/C, Western Union, MoneyGram

Supply Ability: 3000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Weighing Digital Signal Transmitter, Force Measurement Weighing Transmitter, High Accuracy weight transmitter


Display:	6-digit Green Digital Tube, Height 0.32 "	Display Resolution:	100,000
Weighing Platform:	1pc Analog Platform	Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1～6 Load Cells (350Ω)	Analog Output:	0~5V、0~10V、－5V～＋5V、－10V～＋10V、 0~20mA、4～20mA、0～24mA
Communication Port:	RS-232, Baud Rate4800-115,200; RS-485, Baud Rate4800-115,200;	Com. Protocol:	Continue Type、MODBUS-RTU
A/D Conversion Rate:	200Hz	Excitation Voltage:	5VDC
Power Supply:	+24VDC (±10%), Power <3W	Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~ 40°C (14°~ 104 °F); Humidity: 10% ~ 95%; Non-condensing	Dimension (LWH):	71.5mm×86.8mm×57.9mm
Material:	Plastic Housing	IP Class:	IP20
Installation Method:	DIN-rail 35mm	HS Code:	9026209090
Application:	Static Weighing Control Systems And Low Speed Force Measurement Control Systems

Display:	6-digit Green Digital Tube, Height 0.32 "
Display Resolution:	100,000
Weighing Platform:	1pc Analog Platform
Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1～6 Load Cells (350Ω)
Analog Output:	0~5V、0~10V、－5V～＋5V、－10V～＋10V、 0~20mA、4～20mA、0～24mA
Communication Port:	RS-232, Baud Rate4800-115,200; RS-485, Baud Rate4800-115,200;
Com. Protocol:	Continue Type、MODBUS-RTU
A/D Conversion Rate:	200Hz
Excitation Voltage:	5VDC
Power Supply:	+24VDC (±10%), Power <3W
Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~ 40°C (14°~ 104 °F); Humidity: 10% ~ 95%; Non-condensing
Dimension (LWH):	71.5mm×86.8mm×57.9mm
Material:	Plastic Housing
IP Class:	IP20
Installation Method:	DIN-rail 35mm
HS Code:	9026209090
Application:	Static Weighing Control Systems And Low Speed Force Measurement Control Systems

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement-HK180

Descriptions:

The HK180 signal transmitter adopts high-tech design, which has extremely high precision and strong anti-interference. It is suitable for various static weighing control systems and low-speed force measurement systems. It supports multiple communication interfaces and communication protocols (RS232, RS485 support Modbus RTU protocol, and the communication protocol supports customization). And it standard with 35mm guide rail installation, easy installation and operation.

Features:
1. DIN-rail mounting;

2. AD acquisition 200 times/sec, high anti-interference, successfully solved the interference of the instrument when the intercom is on-site calibration, and also through the interference of the servo system within 10KW;

3. Communication interface: RS232, RS485 support Modbus RTU protocol (customizable output protocol);

4. Analog output:0~5V, 0~10V, -5V~+5V, -10V~+10V, 0~20 mA, 4-20mA, 0-24mA;

5. Application areas:

Various static weighing control systems, e.g. for mixing plants, non-explosion-proof chemical and pharmaceutical reactor weighing control systems

Various low speed force measurement control systems, e.g. static presses, process force control in the automotive industry

Dimensions (in mm):

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement 0

Screen & Keyboard:

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement 1

Interface:

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement 2

High Accuracy Digital Signal Transmitter For Weighing And Force Measurement 3
