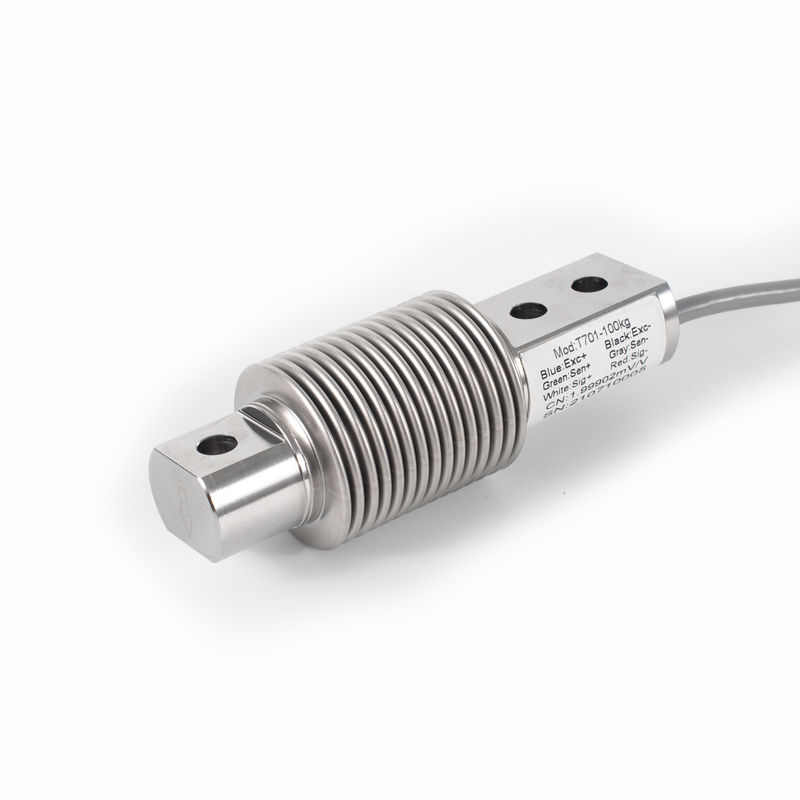

Hermetically Sealed Metal Bellows Load Cell Made Of Stainless Steel Offering Load Capacity of 5-500kg (WL-129)
Product Description:
Hermetically Sealed Metal Bellows Load Cell Made Of Stainless Steel Offering Load Capacity of 5kg-500kg (WL-129)
The Bellow load cell WL-129 is also a shear beam taype load cell, working with the stain gauge technology.The beam type load cell delivers load measuring capacity ranging from 5kg-500kg,with rated output of 2.0±0.05mV/V. Made of stainless steel, the weight transducer WL-129 is hermetically sealed metal bellows with IP 68. The Bellow type load sensor WL-129 offers C3 accuracy ,mg-level resolution and strong stability properties, which make the weight sensor WL-29 suitable for various automated stamping applications.The load cell WL-129 is mainly used in platform and conveyor scales for dosing and level measurement as well as in weighing modules that, for instance are used for tank weighing applications.
In order to satisfy client needs, the stainless steel bellow load cells can also be altered or customized. At BRANS, we recognize that every application is different and needs a customized response. We can adjust our product to meet your unique needs thanks to our bespoke service, which guarantees the highest level of accuracy and dependability. We are devoted to giving you the finest possible solution for your particular application through our tailored service.
Features:
- Shear Beam Load Cells,Bellow Load Cells
- Made of Stainless steel
- Hermetically sealed metal bellows
- Load capacity range:5kg-500kg
- Optimized for parallel connection
- Easy to install; with compact design
- With high precision and mg-level resolution
- Mainly used for platforms and conveyor scales for dosing and level measurment
- Different cable lengths and other options deliverable
Technical Parameters:
| Capacity |
5kg-500kg |
| Rated output |
2.0±0.05mV/V
|
| Accuracy class |
C3 |
| Combined error |
±0.018%F.S. |
| Zero balance |
±2.00%F.S. |
| Non-linearity |
±0.018%F.S. |
| Hysteresis |
±0.017%F.S. |
| Repeatability |
±0.018%F.S. |
| Creep (30min) |
±0.0166%F.S. |
| Temperature effect on sensitivity |
±0.008%F.S./10℃ |
| Temperature effect on zero |
±0.0125%F.S./10℃ |
| Input resistance |
390±5Ω |
| Output resistance |
350±5Ω |
| Insulation resistance |
≥5000MΩ/100VDC |
| Recommended excitation |
5~15VDC |
| Maximum excitation |
20V |
| Compensated temp. range |
-10~40℃ |
| Operation temp. range |
-30~70℃ |
| Nominal displacement |
0.24/0.3/0.29/0.28/0.27/0.31/0.39/0.6mm |
| Safe overload |
150%F.S. |
| Ultimate overload |
300%F.S. |
| IP class |
IP68 (Customizable) |
| Cable size |
Φ5.4×1500mm (Customizable) |
| Material |
Stainless Steel |
| Weight approx. |
0.5kg
|
Dimensions (Unit:mm):
Load direction:
Wiring code:
