High Precision Aluminum Alloy Weighing Sensor Single Point Load Cell(2-50kg)

Product Details

Place of Origin: CHINA

Brand Name: Brans

Model Number: WL-111-01

Document: WL-111 Single Point Load Ce...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 800pcs/Month

Get Best Price
Highlight:

aluminum alloy single point load cell

,

high precision weighing sensor 50kg

,

single point load cell 2-50kg

Capacities:
2kg/5kg/10kg/15kg/20kg/50kg
Rated Output:
1.8±10%mV/V
Excitation Range:
5~15 VDC
Combined Error:
0.02%F.S.
Materials:
Aluminum Alloy
Zero Balance:
±0.02mV/V
Safe Overload:
150%F.S.
Size Of Cable:
Ф4x350mm (Customizable)
Operation Temp:
-20~60°C
IP:
IP65
Capacities:
2kg/5kg/10kg/15kg/20kg/50kg
Rated Output:
1.8±10%mV/V
Excitation Range:
5~15 VDC
Combined Error:
0.02%F.S.
Materials:
Aluminum Alloy
Zero Balance:
±0.02mV/V
Safe Overload:
150%F.S.
Size Of Cable:
Ф4x350mm (Customizable)
Operation Temp:
-20~60°C
IP:
IP65
High Precision Aluminum Alloy Weighing Sensor Single Point Load Cell(2-50kg)

The WL-111 single point load cell is crafted from high-strength aluminum alloy, offering weighing capacities from 2kg to 50kg. This single point load cell features compact dimensions and easy installation, making it ideal for small package weighing in batching, filling, and quality control lines. Typical end uses include micro‑dispensing, pharmaceutical dosing, cosmetics filling, and food packaging.

With a combined error of 0.02%F.S., non‑linearity of 0.02%F.S., and repeatability of 0.02%F.S., this single point load cell delivers high‑grade accuracy for production environments. The rated output is 1.8±10%mV/V, zero balance at ±0.02mV/V, and insulation resistance ≥5000MΩ. Such stable performance ensures that the single point load cell provides drift‑free operation over extended use.

The WL-111 single point load cell offers IP65 protection as standard (customizable to higher ratings), resisting dust and low‑pressure water jets. It operates from -20°C to 60°C, suitable for typical factory environments. Nominal displacement is <0.4mm, minimizing mechanical influence. The standard cable is Φ4mm × 350mm, with customizable lengths available. This single point load cell also supports 5~15 VDC excitation.

This single point load cell excels in applications requiring accurate, repeatable weighing in tight spaces:

  • Micro‑dispensing metering – Precise control of small‑volume liquids or powders

  • Pharmaceutical batching – Dosing and quality control for medicine packaging

  • Cosmetics filling – Filling machines for creams, lotions, and serums

  • Food packaging – Weighing small packages of snacks, spices, or ingredients

  • Production quality control – Checkweighers and sortation systems

When selecting a single point load cell for small package weighing, the WL-111 provides the ideal balance of cost and performance. Whether you need a single point load cell for a micro‑dispenser or a food checkweigher, this model delivers consistent results. Choose the WL-111 single point load cell for your next project.

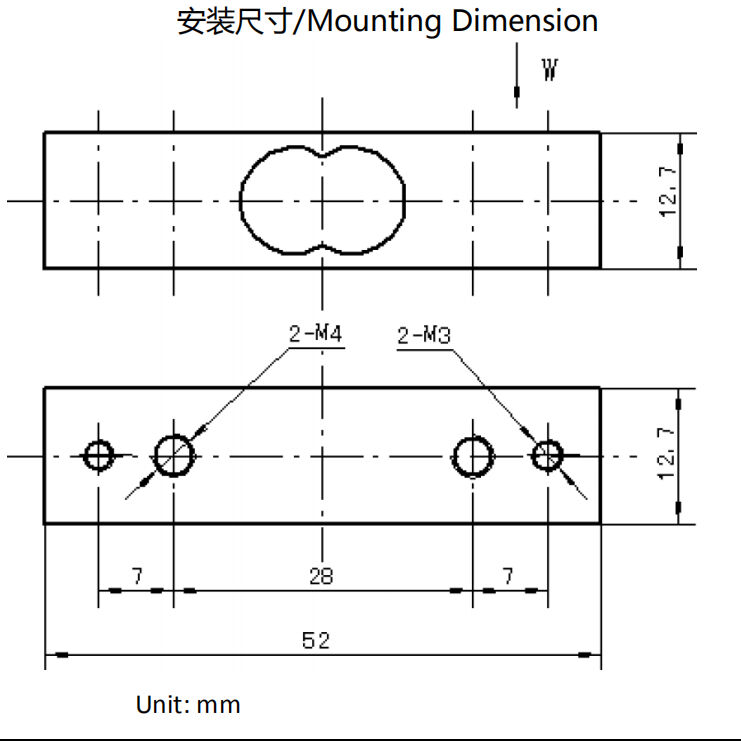

High Precision Aluminum Alloy Weighing Sensor Single Point Load Cell(2-50kg) 0


High Precision Aluminum Alloy Weighing Sensor Single Point Load Cell(2-50kg) 1

High Precision Aluminum Alloy Weighing Sensor Single Point Load Cell(2-50kg) 2



  • Specifications

    Capacity 2kg/5kg/10kg/15kg/20kg/50kg
    Combined Error 0.02%F.S.
    Non-linearity 0.02%F.S.
    Repeatability 0.02%F.S.
    Rated Output 1.8±10%mV/V
    Zero Balance ±0.02mV/V
    Insulation Resistance ≧5000MΩ/100VDC
    Recommended Excitation 5~15VDC
    Material Aluminum Aloy
    Safe Overload 150%F.S.
    Protection Class IP65(Customizable)
    Operation Temp. -20~60°C
    Cable Size Ф4x350mm(Customizable)


At Brans, we engineer load cells that deliver accuracy, reliability, and ease of integration.
