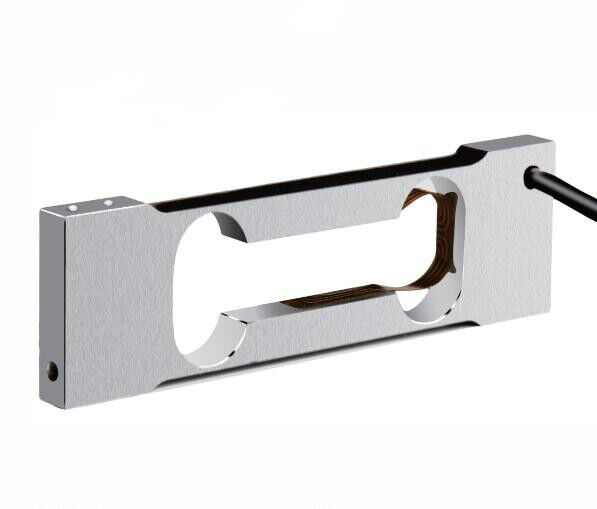

WL-113 Compact Aluminum Alloy Single Point Load Cell 0.1kg To 3kg

Features & Applications

The WL-113 is a high precision single point load cell manufactured from high-strength aluminum alloy, designed for determining small weights from 0.1kg up to 3kg. This compact single point load cell features small dimensions and easy installation, making it highly suitable for precision tasks. Different cable lengths and options are available to meet specific requirements.

With a combined error of 0.01%F.S., non-linearity of 0.015%F.S., and repeatability of 0.01%F.S., this single point load cell delivers excellent measurement accuracy. Its rated output is 2.0±10%mV/V, zero balance is ±2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. The recommended excitation is 5~15 VDC, ensuring that the single point load cell provides stable and reliable performance in various environments.

The WL-113 single point load cell offers IP65 protection as standard, with customizable higher ratings available. It operates within a temperature range of -20°C to 60°C. Nominal displacement is less than 0.4mm, which minimizes mechanical deflection. The standard cable is Φ4mm × 2000mm, and custom lengths can be ordered. Safe overload is 150%F.S., ensuring this single point load cell remains durable under occasional overloads.

Typical application scenarios

• Micro-dispensing metering for precise liquid or powder control

• Pharmaceutical batching and quality control for medicine packaging

• Cosmetics filling machines for creams and serums

• Food packaging for weighing small portions of snacks and spices

• Production quality control systems such as checkweighers

In all these scenarios, the single point load cell ensures accurate and repeatable results. Whether you are designing a new filling machine or upgrading an existing batching system, the WL-113 single point load cell is an excellent choice. This single point load cell offers a perfect balance of compact size and high precision. Select the WL-113 single point load cell for your next small weight measurement project.
