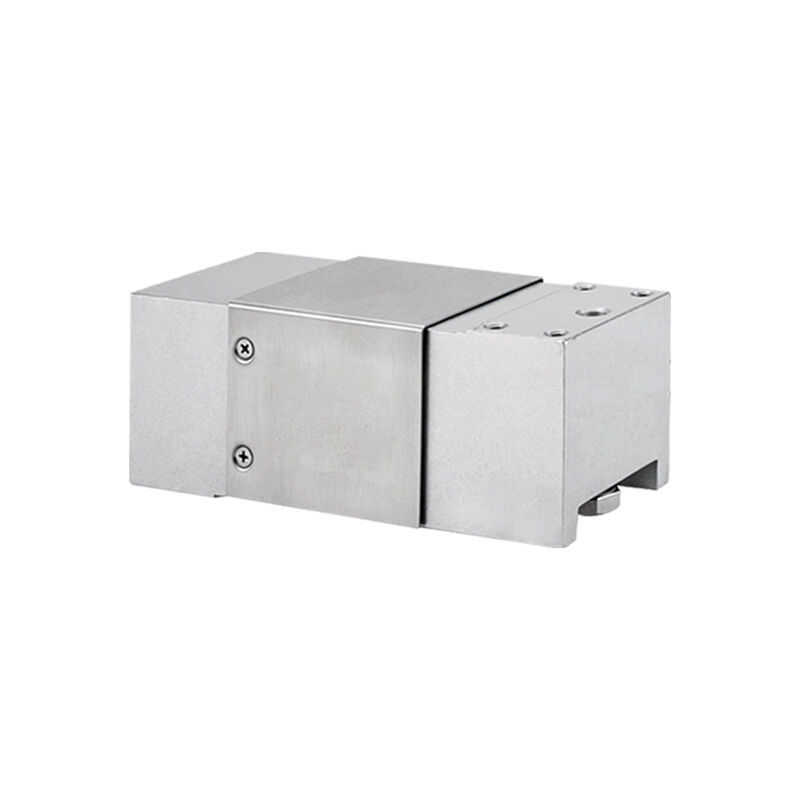

WL-120 High Capacity Single Point Load Cell 50-1000kg IP66

Features & Applications

The WL-120 is a single point load cell constructed from high-strength aluminum alloy, covering a wide capacity range from 50kg to 1000kg with a maximum platform size of 800×800mm. This single point load cell features a compact structure that supports dynamic weighing, making it ideal for checkweighing systems in building materials, liquid energy, gas filling, canning, and other industrial applications. Cable length and other options can be customized to meet specific installation requirements.

This single point load cell achieves a combined error of ≤±0.017%F.S., non-linearity of ≤±0.017%F.S., and repeatability of ≤±0.017%F.S. Rated output is 2.0±10%mV/V, zero balance is ±0.02mV/V, and insulation resistance is ≥5000MΩ/100VDC. With recommended excitation of 10~15 VDC, this sensor ensures stable and repeatable measurements for high-capacity dynamic weighing operations in demanding environments.

The WL-120 offers IP66 protection as standard, with customizable higher ratings available. It operates within -10°C to 40°C, and nominal displacement ranges from 0.3mm to 0.5mm depending on applied load. Standard cable is Φ5mm × 2000mm, and custom lengths can be ordered. Safe overload is 150%F.S., and the robust aluminum alloy construction provides long-term reliability under heavy-duty industrial conditions.

Typical application:

• Liquid energy filling: weight verification for fuel, oil, and chemical containers

• Gas cylinder filling: monitoring propane, butane, or compressed gas weights

• Canning systems: fill level inspection for canned food, beverages, and aerosols

• Building materials: checkweighing of cement bags, dry mix, or aggregate containers

• Dynamic checkweighing: high-speed in-motion weight sorting on production lines

• Industrial platform scales: large-format weighing systems up to 800×800mm

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging & Shipping Standards

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
