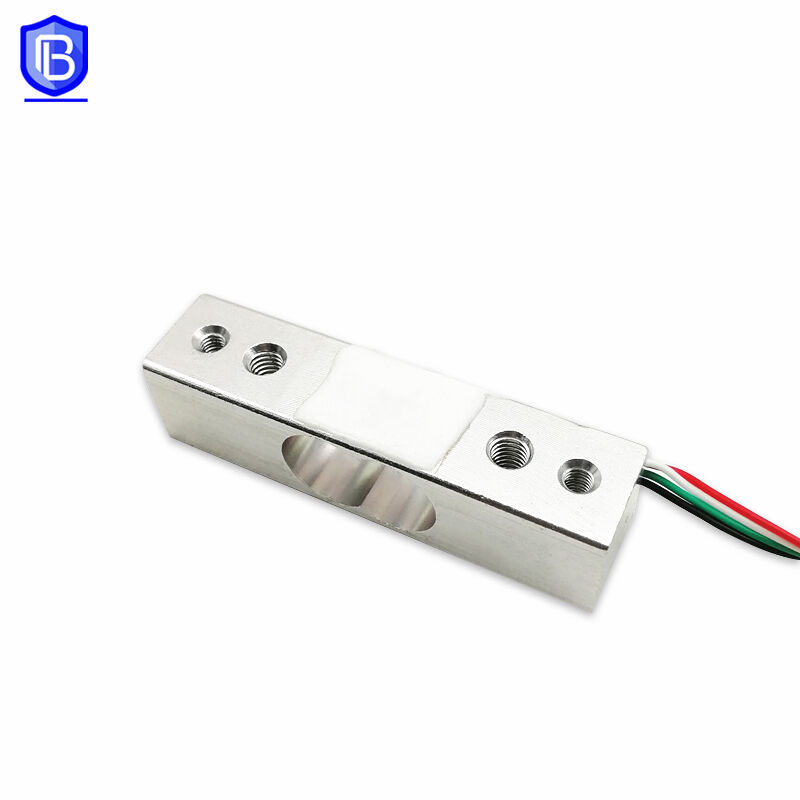

WL-111 High Accuracy Load Cell 2kg 5kg 10kg 15kg 20kg 50kg

WL-111 High Accuracy Load Cell 2kg 5kg 10kg 15kg 20kg 50kg

Features & Applications

The WL-111 is a single point load cell manufactured from high-strength aluminum alloy, designed for capacities ranging from 2kg to 50kg. This single point load cell features high precision, small dimensions, and easy installation, making it suitable for a wide range of small package weighing applications. Different cable lengths and other options are available upon request.

This single point load cell delivers a combined error of 0.02%F.S., non-linearity of 0.02%F.S., and repeatability of 0.02%F.S. Rated output is 1.8±10%mV/V, zero balance is ±0.02mV/V, and insulation resistance is ≥5000MΩ/100VDC. With recommended excitation of 5~15 VDC, this sensor provides stable and repeatable measurements for precision weighing tasks.

The WL-111 offers IP65 protection as standard, with customizable higher ratings available. It operates within a temperature range of -20°C to 60°C. Nominal displacement is less than 0.4mm, ensuring minimal mechanical deflection. Standard cable is Φ4mm × 350mm, with custom lengths available. Safe overload is 150%F.S., and the aluminum alloy construction ensures lightweight durability.

Typical application scenarios

• Micro-dispensing metering: precise control of small-volume liquids or powders

• Pharmaceutical batching: dosing and quality control for medicine packaging

• Cosmetics filling: filling machines for creams, lotions, and serums

• Food packaging: weighing small packages of snacks, spices, or ingredients

• Production quality control: checkweighers and sortation systems for small packages

• Specifications

  Capacity	2kg/5kg/10kg/15kg/20kg/50kg
  Combined Error	0.02%F.S.
  Non-linearity	0.02%F.S.
  Repeatability	0.02%F.S.
  Rated Output	1.8±10%mV/V
  Zero Balance	±0.02mV/V
  Insulation Resistance	≧5000MΩ/100VDC
  Recommended Excitation	5~15VDC
  Material	Aluminum Aloy
  Safe Overload	150%F.S.
  Protection Class	IP65(Customizable)
  Operation Temp.	-20~60°C
  Cable Size	Ф4x350mm(Customizable)
