Highlight:
high-speed weighing controller HK360
, dual-version weighing terminal
, weighing controller with applications
A/) Conversion Rate: |
200Hz (weighing Wersion), 2000Hz (force Measurement Wersicn) |
Load Cell Type: |
Amalog Resisianee Strain Seusor (sensirivity Oupu 0-3mV'V) |
Load Cell Supply: |
5VDC |
Lnput Sensitivity: |
0.6μV/d |
Com. Port: |
RS2321485: $ecomd Display RS232 Port (fully Isolated) |
Analog Output: |
0~5V、0~10V、-5V~+5V、-10V~+10V、0~20mA、4~20mA、0~24mA |
Com. Protocol: |
MOBUS-RTU,continsous Output Format, Command Cutput Format |
I/O Port: |
2 Inputs, 4 Outputs (fully Isolated) |
Display: |
0.95-inch 128*64 Full-dot, Green OLED) Display, Supports Chinese And English Menus |
Display Range: |
Maximum Display Range 200000 |
Dispiay Resolution: |
10000 |
Keyboard: |
24VDC(10-30VDC),power S10W/AC100-240v Wighing Version Opeional |
Operation Temp Range: |
4 Light-touch Membeane Fumction Buttons (up, Dawn, LeÃ, Righ) With Buzzer Button Prampis |
Operation Temp Range: |
Temperalure:-10"C-40"€(14’F-104"F);reimive Humidily 10%-95%,non-condensing |
Dimensions (LxW*H): |
ABS+PE Plassie Flame Relardant Shell |
Channel: |
1-4 Channels Optional (each Channel Can Drive L-8 350Q Sensors) |

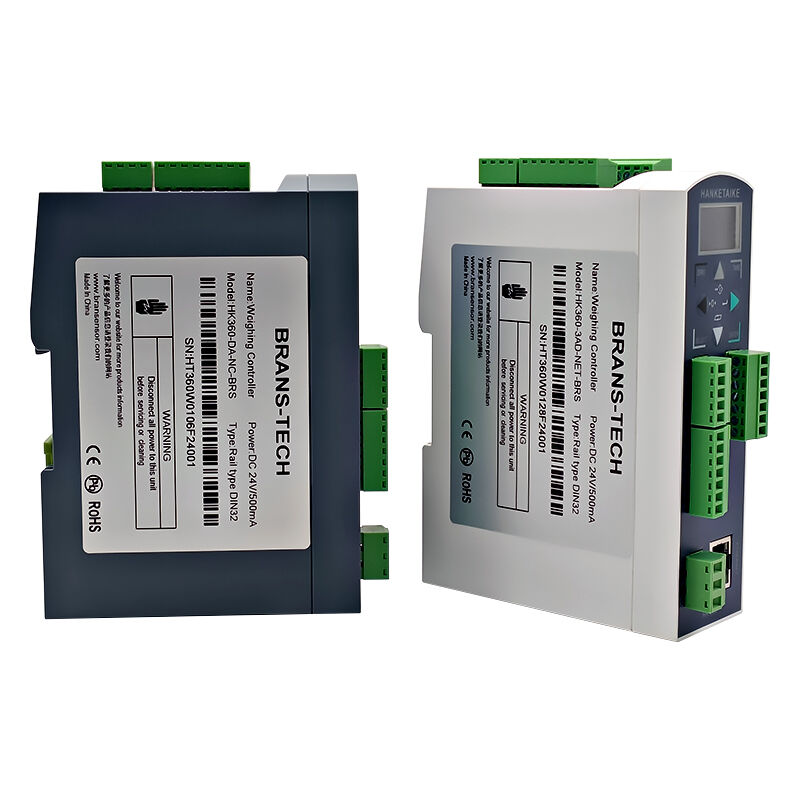

High‑Speed Weighing Controller With Dual‑Version Applications HK360
Features& Applications
-
-
AD acquisition up to 2000 times/sec with high anti-interference.
-
Chinese/English menu supported with green OLED display.
-
High-precision analog output optional: 4–20mA, 0–10V, etc.; auto-calibrated with minimal need for adjustment.
-
Supports up to 3 independent channels; each channel can calibrate independently and supports weight-free calibration.
-
Rich interfaces: RS232, RS485 (Modbus RTU); expandable to PROFIBUS DP, PROFINET, Ethernet/IP, EtherCAT, Modbus TCP.
-
Rich logic control: single-material increment/decrement batching, check-weigh batching, preset point, servo press control, constant pressure control, etc.
-
Optional secondary 4.3-inch TFT color display for extended viewing/operation.
-
Customized host computer software development available.
Applications:
-
HK360-W (Weighing Version): chemical/pharmaceutical batching, filling, tank/reactor weighing, level control via relay to PLC/DCS systems; also for biopharmaceuticals, photovoltaics, and new energy battery batching.
-
HK360-F (Force Measurement Version): 3C electronics, mobile phone/automobile manufacturing, new energy batteries, photovoltaics; compatible with international PLCs; suitable for local control or slave control with PLC/PC.
Display And Panel
Status Information
Product Selection
Shipping & Packaging
To ensure the safe delivery of your instrument, we will implement the following packaging measures:
- The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
- High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
- The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
- An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
- The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
- A shipping label containing your address and product information will be prominently affixed to the outer carton.
- We will arrange shipment through a reputable logistics service provider.
After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
