High Precision Weighing Display Controller Digital Weighing Controller

Name: High Precision Weighing Display Controller Digital Weighing Controller
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: HK202
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Certification: OIML

Model Number: HK202

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $265(1-49pcs); $250(50-99pcs)

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: T/T, , L/C, Western Union, MoneyGram

Supply Ability: 3000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Weighing Display Controller, Digital Weighing Controller


Display:	6-digit Green Digital Tube, Height 0.6 "	Display Type:	LED
Display Resolution:	100,000	Weighing Platform:	1pc Analog Platform
Min. Input Interval:	0.6μV/d	Communication Port:	RS-232, Baud Rate4800-115,200; RS-485, Baud Rate4800-115,200;
I/O:	1 Input And 3 Relay Outputs	Com. Protocol:	Continue Type、MODBUS-RTU
A/D Conversion Rate:	200Hz	Operation Temp Range:	-10°~ 40°C (14°~ 104 °F); Humidity: 10% ~ 95%; Non-condensing

Display:	6-digit Green Digital Tube, Height 0.6 "
Display Type:	LED
Display Resolution:	100,000
Weighing Platform:	1pc Analog Platform
Min. Input Interval:	0.6μV/d
Communication Port:	RS-232, Baud Rate4800-115,200; RS-485, Baud Rate4800-115,200;
I/O:	1 Input And 3 Relay Outputs
Com. Protocol:	Continue Type、MODBUS-RTU
A/D Conversion Rate:	200Hz
Operation Temp Range:	-10°~ 40°C (14°~ 104 °F); Humidity: 10% ~ 95%; Non-condensing

High Precision Weighing Display Controller Digital Weighing Controller

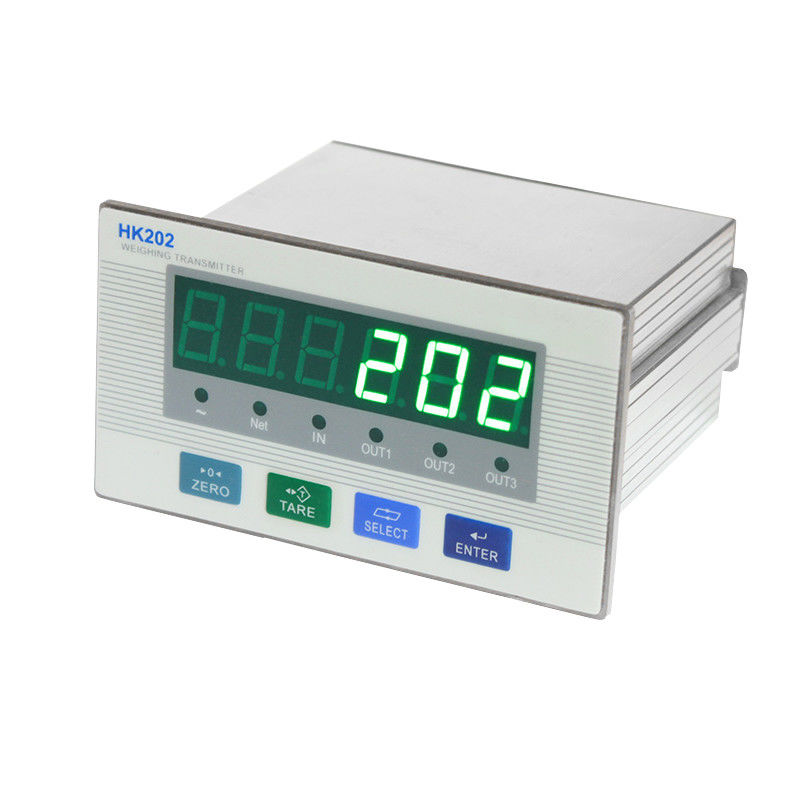

High-Precision Weighing Display Controller-HK202

Descriptions:

The HK202 force measuring & weighing controller is featured with high precision, high speed and high stability. And it standards with three relay outputs and one input, and with a variety of logic output modes. It supports multiple communication interfaces and communication protocols (RS232, RS485 support Modbus RTU protocol, and the communication protocol supports customization), can add analog output on this basis. It is suitable for various high-speed and high-precision weighing control sites. And anti-corrosion version is optional.

Features:
1. Panel mounting;

2. AD acquisition 200 times/sec, high anti-interference, successfully solved the interference of the instrument when the intercom is on-site calibration, and also through the interference of the servo system within 10KW;

3. Communication interface: RS232, RS485 support Modbus RTU protocol (customizable output protocol);

4. IO relay output (with a variety of logic output modes, support customized services)

5. Analog output optional:0~5V, 0~10V, -5V~+5V, -10V~+10V, 0~20 mA, 4-20mA, 0-24mA;

6. Application areas:

Suitable for force measurement; as well as chemical industry, large tanks in mixing stations, reactors weighing and measuring, high and low material level relay output to PLC, DCS system control valve switch, printing and dyeing industry for weighing and central control.

Dimensions (in mm):

High Precision Weighing Display Controller Digital Weighing Controller 0

Screen & Keyboard:

High Precision Weighing Display Controller Digital Weighing Controller 1

Interface:

High Precision Weighing Display Controller Digital Weighing Controller 2
