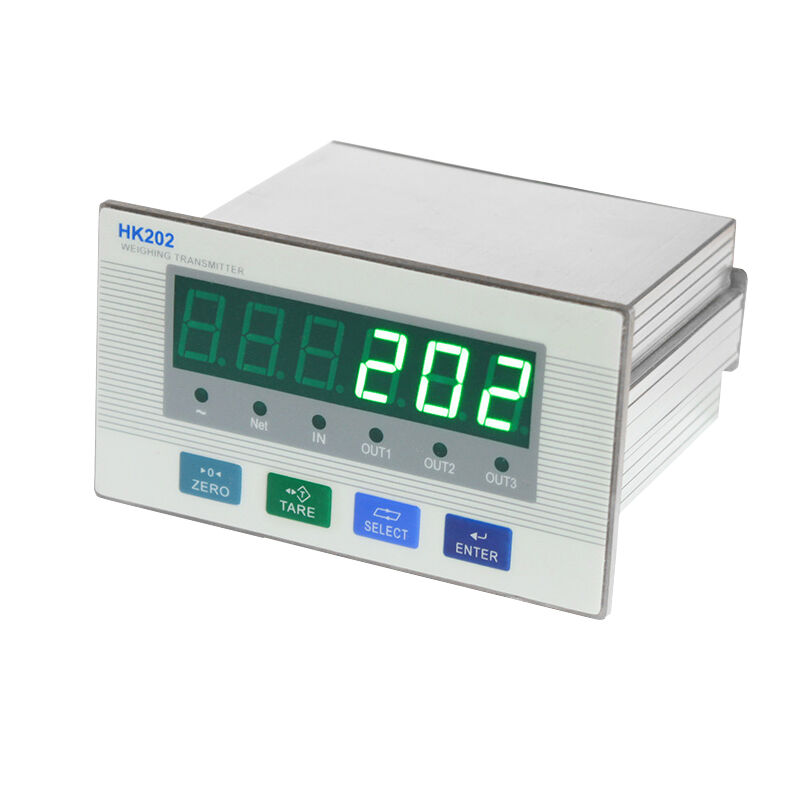

Weighing Controller with Relay Output for PLC/DCS Integration HK202

Name: Weighing Controller with Relay Output for PLC/DCS Integration HK202
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: HK202
Price: 133.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: HK202

Document: HK202 Force Measuring & Wei...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 300pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                weighing controller with relay output, PLC DCS weighing controller HK202, industrial weighing terminal with warranty


Display:	6-digit Green Digital Tube, Height 0 6 "	Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform	Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~6 Load Cells (350Ω)	Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:	Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	200Hz	Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W	Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing	Dimension (LWH):	93mmx85mmx45mm
Material:	Aluminum Housing	IP Class:	IP65

Display:	6-digit Green Digital Tube, Height 0 6 "
Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform
Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~6 Load Cells (350Ω)
Analog Output:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:
Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	200Hz
Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W
Keyboard:	4 Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing
Dimension (LWH):	93mmx85mmx45mm
Material:	Aluminum Housing
IP Class:	IP65

Weighing Controller with Relay Output for PLC/DCS Integration HK202

Features& Applications

- Panel-mounted design.
- High-speed AD acquisition at 200 times/sec with strong anti-interference, overcoming interference from on-site intercom calibration and servo systems up to 10KW.
- Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol (output protocol customizable).
- IO relay outputs with various logic modes, supporting customized functions.
- Optional analog outputs: 0–5V, 0–10V, ±5V, ±10V, 0–20mA, 4–20mA, and 0–24mA.
- Ideal for force measurement applications.
- Suitable for chemical industry, large tank weighing in mixing stations, reactor weighing/measurement, and relay-based material level control for PLC/DCS systems.
- Used in printing and dyeing industries for centralized weighing control.

Sereen & Keyboard

Weighing Controller with Relay Output for PLC/DCS Integration HK202 0

Wiring Code

Weighing Controller with Relay Output for PLC/DCS Integration HK202 1

Interface

Weighing Controller with Relay Output for PLC/DCS Integration HK202 2

Dimensions (mm)

Weighing Controller with Relay Output for PLC/DCS Integration HK202 3

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
