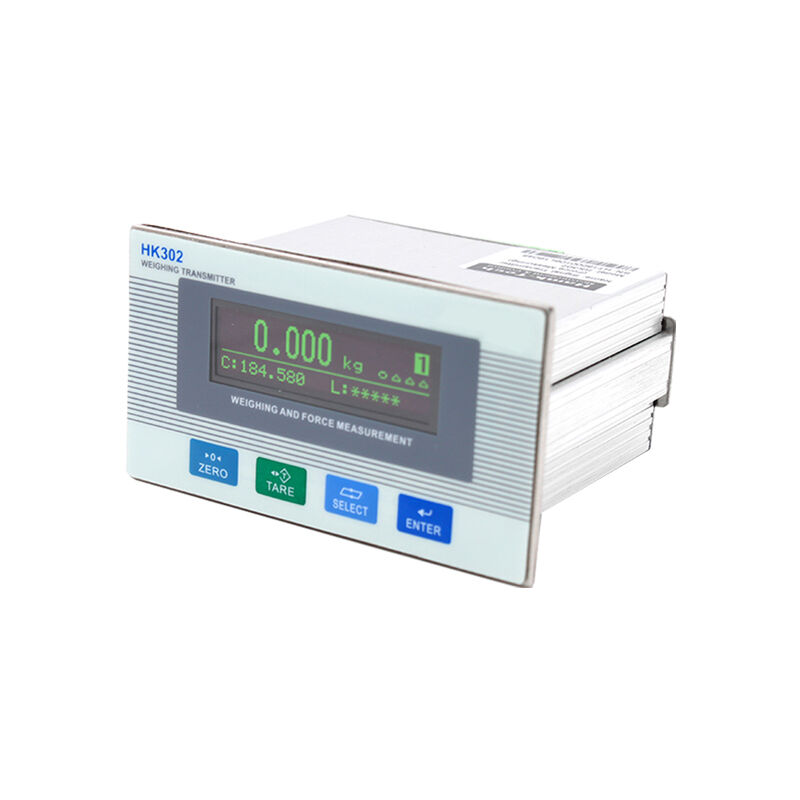

Weighing Indicator With Relay & Analog Output For Automation Control HK302

Name: Weighing Indicator With Relay & Analog Output For Automation Control HK302
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: HK302
Price: 133.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: HK302

Document: HK302 Force Measuring & Wei...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Delivery Time: one week

Payment Terms: T/T

Supply Ability: 300pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                weighing indicator with relay output, automation control weighing terminal, HK302 analog output weighing controller


Display:	6-digit Green Digital Tube, Height 0 6 "	Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform	Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~6 Load Cells (350Ω)	Analog Output:	0~5V、0~10V、-5V~+5V、-10V~+10V、0~20mA、4~20mA、0~24mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:	Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	200Hz	Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W	Keyboard:	4 Easy Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing	Dimension (LWH):	85mmx93mmx45mm
Material:	Alloy Aluminum	IP Class:	IP65

Display:	6-digit Green Digital Tube, Height 0 6 "
Display Resolution:	100,000
Weighing Platform:	1 Pe Analog Platform
Min. Input Interval:	0.6μV/d
Input Load:	Drive Up To 1~6 Load Cells (350Ω)
Analog Output:	0~5V、0~10V、-5V~+5V、-10V~+10V、0~20mA、4~20mA、0~24mA
Communication Port:	RS-232, Baud Rate4800-115,200;RS-485, Baud Rate4800-115.200:
Com. Protocol:	MODBUS-RTU、Continue Type
A/D Conversion Rate:	200Hz
Excitation Voltage:	5VDC
Power Supply:	+24VDC(±10%),power <3W
Keyboard:	4 Easy Touch Buttons
Operation Temp Range:	-10°~40°C(14°~104F); Humidity: 10%~95%; Non-condensing
Dimension (LWH):	85mmx93mmx45mm
Material:	Alloy Aluminum
IP Class:	IP65

Weighing Indicator With Relay & Analog Output For Automation Control HK302

Features& Applications

- High-speed AD acquisition at 1000 times/sec with peak hold capability.
- Strong anti-interference, effectively overcomes interference from on-site intercom calibration and servo systems up to 10KW.
- Rich output interfaces: RS232 and RS485 supporting Modbus RTU protocol (customizable).
- Analog output options: ±10V, ±5V, 4–20mA, 0–24mA.
- IO relay outputs with multiple logic modes (customizable).
- Allows modification of range, decimal point, and division value without affecting calibration.
- Suitable for medium to high‑speed force measurement applications, such as automatic servo presses and automatic grinding machines.

Sereen & Keyboard

Weighing Indicator With Relay & Analog Output For Automation Control HK302 0

Wiring Code

Weighing Indicator With Relay & Analog Output For Automation Control HK302 1

Interface

Weighing Indicator With Relay & Analog Output For Automation Control HK302 2

Dimensions (mm)

Weighing Indicator With Relay & Analog Output For Automation Control HK302 3

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
