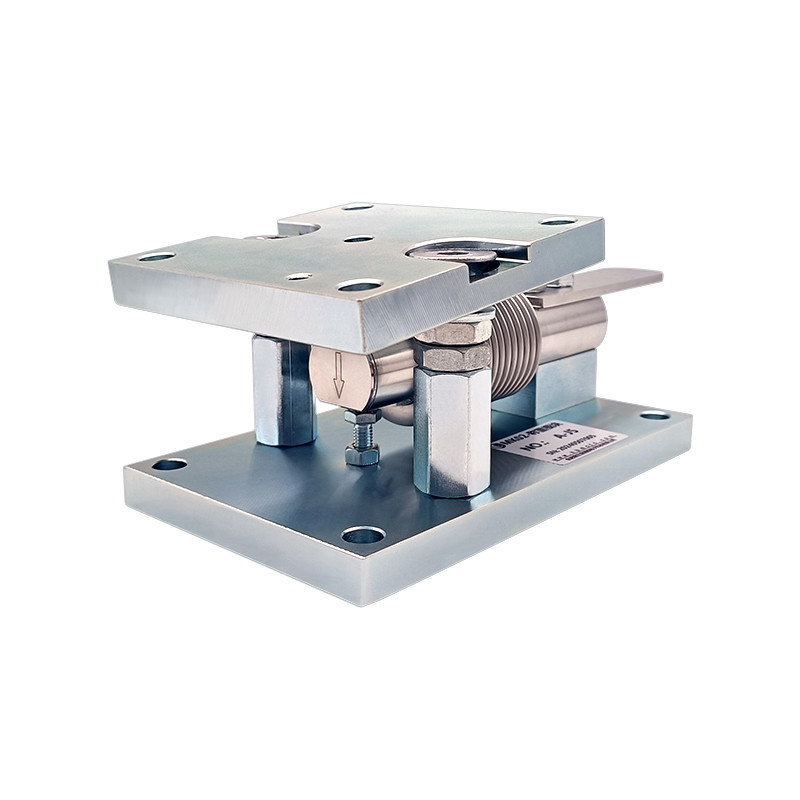

Hopper Scale Load Cell Hopper Load Cells 6 Wires IP67 Weigh Module

Bellow Beam Weighing Modules 5kg to 500kg Weighing- MK01

Product Description:

The MK01 makes for a versatile and lost-cost weighing system intended for use in platform and conveyor  scales for dosing and level measurement. It has been optimized to deliver outstanding performance and easy installation and maintainment. The WL-129 bellow load cell offers robust 6-wire configuration for compensation of resistance variations, covering load capacities ranging from 5kg to 500kg,providing a cost-efficient solution for various indutrial weighing systems. In addition, the load cell has low sensitivity tolerance and output resistance with excellent off-center load response.


Features&Applications:

• Hermetically sealed bellow load cell
• Two bottom and top plates made of stainless steel
• Small deflection and excellent off-center load behaviour
• Stainless steel construction for load cell
• 5kg to 500kg weighing
• High precision and mg-level resolution
• Different cable lengths,capcities, dimensions are optionally available
• Mainly used in platform, convey scales, tanking weighing

Dimension(MM):

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
