Compression Weigh Modules Precision Weigh Module 1100kg 2200kg

Name: Compression Weigh Modules Precision Weigh Module 1100kg 2200kg
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: MK03
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Model Number: MK03

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Compression Weigh Modules 5.5kN, Compression Precision Weigh Module, 1100kg Weigh Module


Rated Capacity:	5/10/20/30/50/100/200/300/110/220/550/1100/2200/4400kg	Max. Uplift Force,:	5.5/16/22.2kN
Material:	Carbon Steel/304 Stainless Steel/ 316 Stainless Steel	Max. Uplift Force, Ultimate:	22 / 50 / 55kN
Customized:	Customized	Warranty:	12months
Transport Package:	Carton Box	Applications:	Tanks And Silos

Rated Capacity:	5/10/20/30/50/100/200/300/110/220/550/1100/2200/4400kg
Max. Uplift Force,:	5.5/16/22.2kN
Material:	Carbon Steel/304 Stainless Steel/ 316 Stainless Steel
Max. Uplift Force, Ultimate:	22 / 50 / 55kN
Customized:	Customized
Warranty:	12months
Transport Package:	Carton Box
Applications:	Tanks And Silos

Compression Weigh Modules Precision Weigh Module 1100kg 2200kg

Product Description:

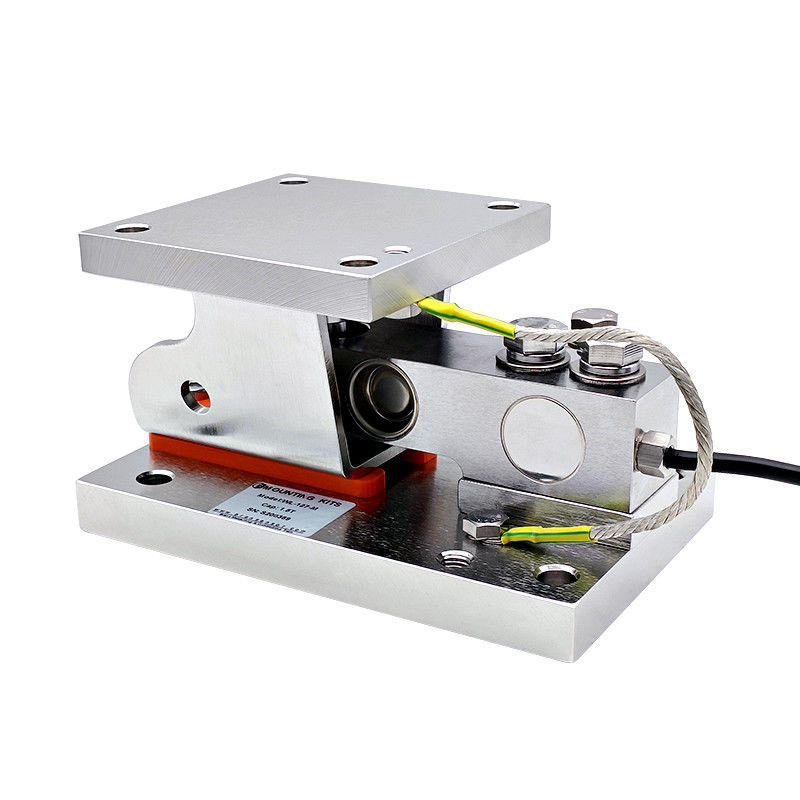

The MK03 weighing module comprises a Brans shear beam load cell WL-127 for a load range of 0.11~4.4t and two optional stabilizers to keep scale away from heavy vibration.The MK03 weighing module is great fit for various ultrathin electronic truck scale,one-truck crane scale,hopper scale,etc. The weighing module features relaible and maintenance-free operation with supporting bolts preventing equipment from tipping over.

Features&Applications:

Hermetically encapsulated shear beam load cell
0.11t~4.4t maximum load cell capacities
Optimized for parallel connection
Locked weigh module and load cell safeguarded during installation
With calibration without test weights
Different cable lengths,capcities, dimensions are optionally available

Dimension(MM):

Compression Weigh Modules Precision Weigh Module 1100kg 2200kg 0

Compression Weigh Modules Precision Weigh Module 1100kg 2200kg 1

Wiring:

Compression Weigh Modules Precision Weigh Module 1100kg 2200kg 2

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
