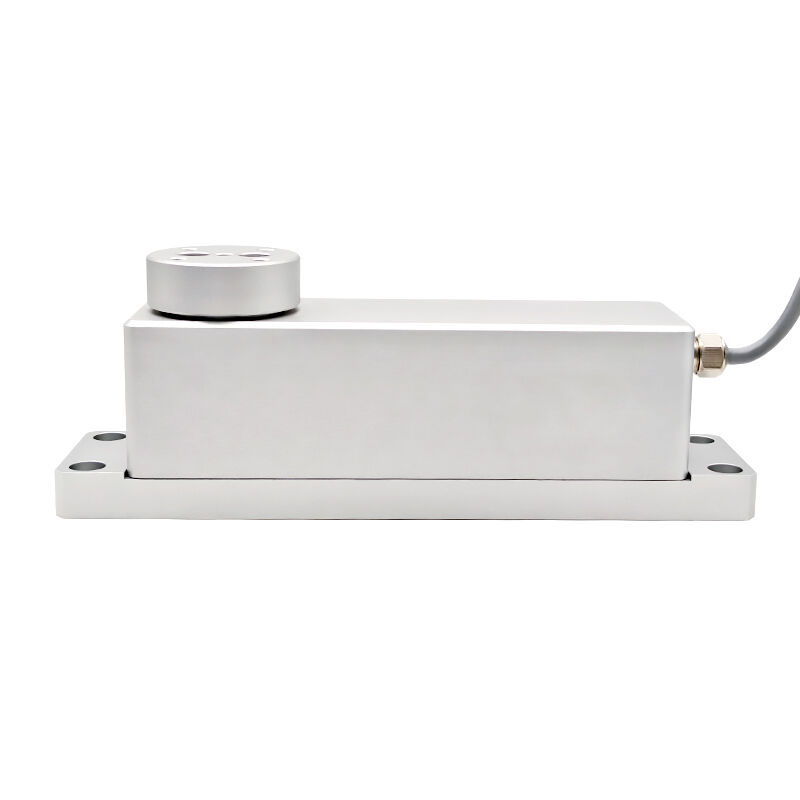

WLSM-133 Integrated Overload Protection Module 5kg 10kg 20kg 30kg 50kg 100kg 150kg

WLSM-133 Integrated Overload Protection Module 5kg 10kg 20kg 30kg 50kg 100kg 150kg

Features & Applications

• The WLSM-133 is a high accuracy load cell weighing module constructed from aluminum alloy, designed for capacities ranging from 5kg to 150kg. This weighing module supports dynamic weighing tasks and features integrated overload protection. With good consistency of rated output, multiple units can be used in parallel. It is mainly used for weighing and metering in the food, packaging, and chemical industries, as well as in trade and agriculture, and is also suitable for production systems such as intelligent warehousing, belt scales, and canning. Custom cable lengths and other options are available.

  This weighing module delivers a combined error of ≤0.01%F.S., non-linearity of ≤0.017%F.S., and repeatability of ≤0.01%F.S. Rated output is 2.0±0.05mV/V, zero balance is ±2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. With recommended excitation of 2~15 VDC, this module provides stable and repeatable measurements for both static and dynamic weighing tasks.

  The WLSM-133 offers IP66 protection as standard, with customizable higher ratings available. It operates within a wide temperature range of -30°C to 70°C. Nominal displacement is ≤0.2mm, ensuring minimal mechanical deflection. Standard cable is Φ5mm × 4000mm, with custom lengths available. Safe overload is 150%F.S., and the integrated overload protection prevents damage from accidental load spikes. The aluminum alloy construction ensures lightweight durability.





  Typical application scenarios

  • Food industry: dynamic weighing and metering on packaging and filling lines

  • Chemical industry: batching and quality control for powders or liquids

  • Trade and agriculture: platform scales, price computing scales, and livestock weighing

  • Intelligent warehousing: automated weighing for inventory and logistics

  • Belt scales: continuous in-motion weighing for bulk materials

  • Canning systems: fill level verification for cans, jars, and bottles







Specifications:

Capacity	5kg/10kg/20kg/30kg/50kg/100kg/150kg
Rated output	2.0±0.05mV/V
Zero balance	±2%mV/V
Non-linearity	≤0.017%F.S.
Repeatability	≤0.01%F.S.
Hysteresis	≤0.018%F.S.
Combined error	≤0.01%F.S.
Input resistance	380±10Ω
Output resistance	350±10Ω
Insulation resistance	≥5000MΩ/100VDC
Recommended excitation	2-15VDC
Operation temp. range	-30~70℃
Safe overload	150%F.S.
IP class	IP66(Customizable)
Cable size	Φ5×4000mm (Customizable)
Material	Aluminum alloy
Nominal displacement	≤0.2mm

Dimension(MM):

Load Direction:

Wiring:
