Product Description:

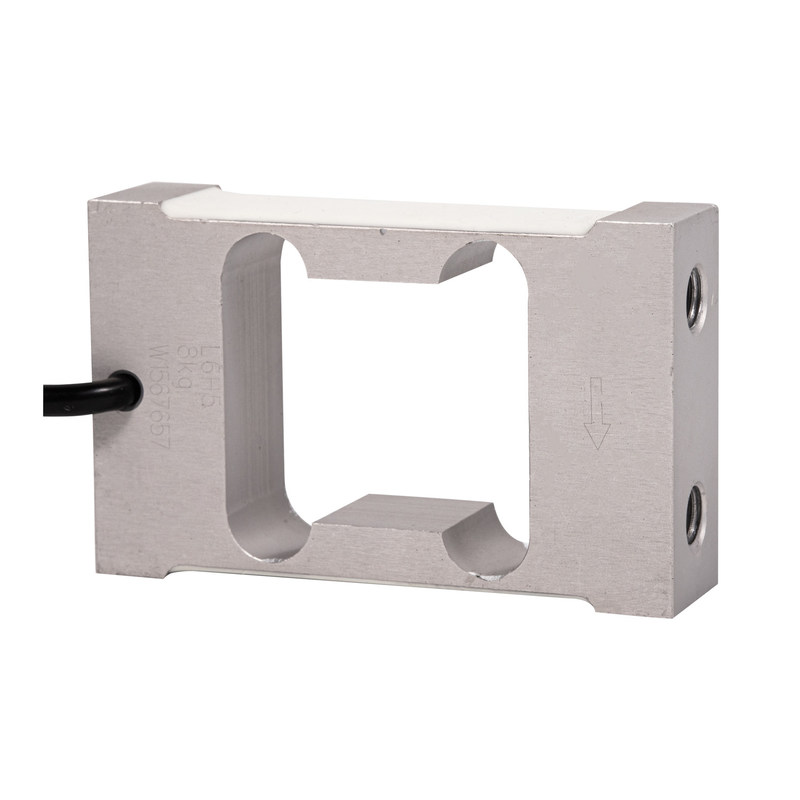

Designed for high-speed dynamic weighing, the WL-119 is a side mounted single point load cell manufactured from durable aluminum alloy. This single point load cell handles loads from 1 kg to 30 kg with excellent repeatability. Thanks to strain gauge technology, the single point load cell provides stable output even under continuous motion. The compact structure of this single point load cell accommodates platform sizes up to 200×200 mm. Installation is straightforward: one side of the single point load cell is fixed with screws, while the opposite side supports the load. Users can choose from three different dimensions, allowing the single point load cell to fit various machinery designs. Dynamic weighing systems rely on this single point load cell for fast and accurate readings. Brans ensures that each single point load cell can be tailored to unique customer specifications. From food packaging to automatic filling, this single point load cell excels in demanding environments. Every single point load cell undergoes rigorous testing to guarantee long-term reliability.

Features and Applications:

• Side mounted single point load cell ideal for dynamic weighing

• Aluminum alloy construction with 1–30kg capacity range

• Compact form factor supporting 200×200 mm platform

• Three available dimensions for versatile mounting

• Each single point load cell offers high accuracy and fast response

• Primary applications: food packaging machines, electronic scales, auto filling machines

• Custom cable lengths and other options available per single point load cell

Specifications:

Dimension(MM):

                               Capacity : 4/5/6/8/10/20/30kg

                                                   Capacity : 1/2/3/5kg

                                 Capacity :10/15/20/30kg

Load Direction:

Wiring:
