Embedded Digital Weighing Transmitter Analog Weighing Transmitter

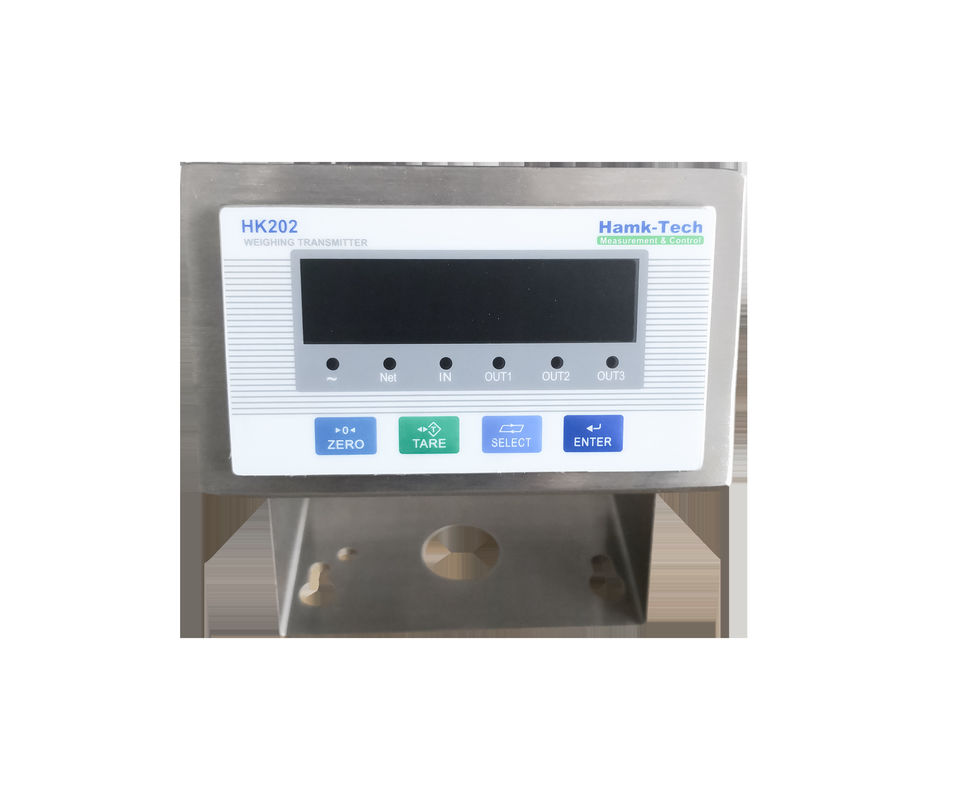

Analog Digital EmBeded Weighing Transmitter With Fast Aquisition Speed-HK202

Product Description:

The HK202 weighing transmitter provides with high precision,high speed and high stability. And the HK202  force measuring and weighing controller is suitable for force measurement, chemical industry, large material tanks in mixing stations, reactor weighing and metering, high and low material level relay output to PLC and DCS system to control valve switches, and printing and dyeing industry for weighing and centralized control. It standards with three relay outputs and one input,and with a variety of logic output modes.It supports multiple communication interfaces and communication protocols(RS232,RS485 support Modbus RTU protocol, and the communication protocol supports customization),can add analog output on this basis.


Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure
providing the best solution, the transmitter can be adapted to meet customer requirements.


Features:

1. 4 light -touch membrane function buttons

2. AD acquisition 200 times/second. High anti-interference, successfully solved the interference to the instrument when the intercom was calibrated on site, and also passed the interference of the servo system within 10KW.

3. Analog output optional:0~5V, 0~10V, -5V~+5V, -10V~+10V, 0~20 mA, 4-20mA, 0-24mA

4. Dimensions ( L*W*H )93mm*85mm*45mm

5.Communication port:  One RS232, 4800~115200 baud rate

                                      One RS485, 4800~115200 baud rate

6.Anti-corrosion version is optional

Specifications:

Screen and Keyboard:

Interface:

Dimensions(mm):

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
