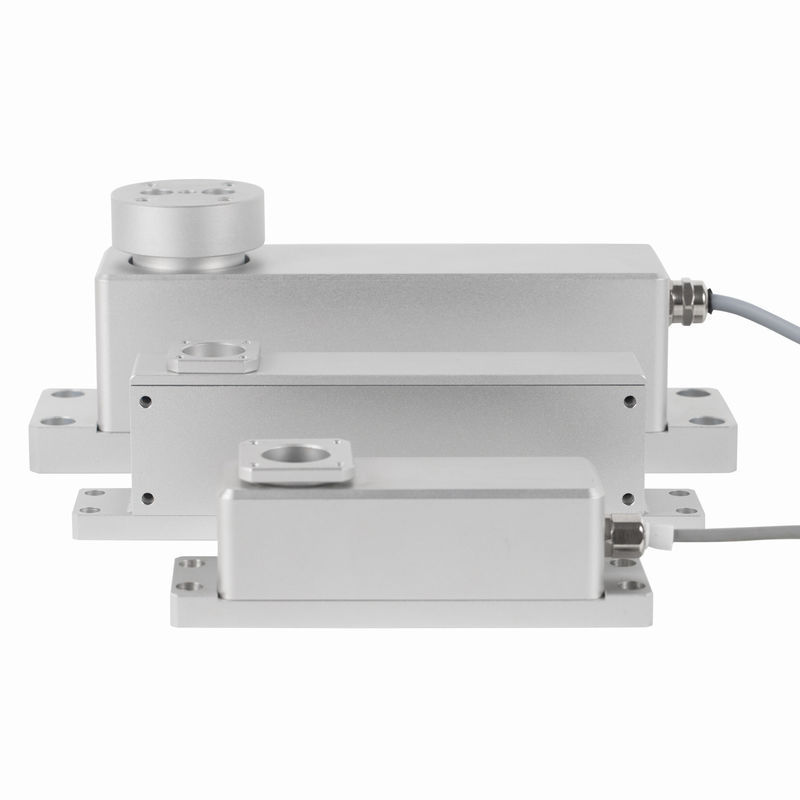

IP 54 Load Cell For Micro-volume High-precision Weighing-WLSM-131
Product Description:
The weighing module WLSM-131 offers high precision and mg level precision weighing, available in different capacities options 200g/300g/500g/1kg/2kg/3kg/5kg. With its great stability, the load cell WLSM-131 can achieve mg-level precision, making it the ideal choice for micro-volume high-precision weighing.The WLSM-131 features non-linearity of 0.01%F.S. ,nominal displacement of 0.4 mm and operation temperature of -40-85℃ . And The WLSM-131 is primarily used for batching, filling, and production control in micro-dispensing metering, pharmaceutical, cosmetics, food packaging, and other small packaging applications.
The single point load cells can also be modified or adapted to meet customer requirements. At BRANS, we understand that each application is different and requires a customized response. We can adapt our product to your specific needs through our customized service, ensuring the highest accuracy and reliability. We want to provide you with the best possible solution for your particular application through our customized service.
Features:
- Single point load cells
- Made of aluminum alloy
- High accuracy, built-in overload protection
- Mg-level resolution and great stability
- Shielded connection cable
- Available in different cable lengths and other options
- Specially designed for high-precision weighing applications in the micro-volume range
Technical Parameters:
| Capacity |
200g/300g/500g/1kg/2kg/3kg/5kg |
| Rated output |
2.0mV/V
|
| Accuracy |
mg-level |
| Zero balance |
±0.05mV/V |
| Non-linearity |
≤0.01%F.S. |
| Repeatability |
≤0.01%F.S. |
| Hysteresis |
≤0.01%F.S.
|
| Combined error |
≤0.01%F.S. |
| Input resistance |
350±20Ω |
| Output resistance |
350±10Ω |
| Insulation resistance |
≥5000MΩ/100VDC |
| Recommended excitation |
2-12VDC |
| Operation temp. range |
-40~85℃ |
| Safe overload |
150%F.S. |
| IP class |
IP54 (Customizable) |
| Cable size |
Φ3.2×4000mm (Customizable) |
| Material |
Aluminum alloy |
Dimensions (Unit:mm):
Load direction:
Wiring:
Packing and Shipping:
Load Cell Packaging and Shipping
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
