Product Description:

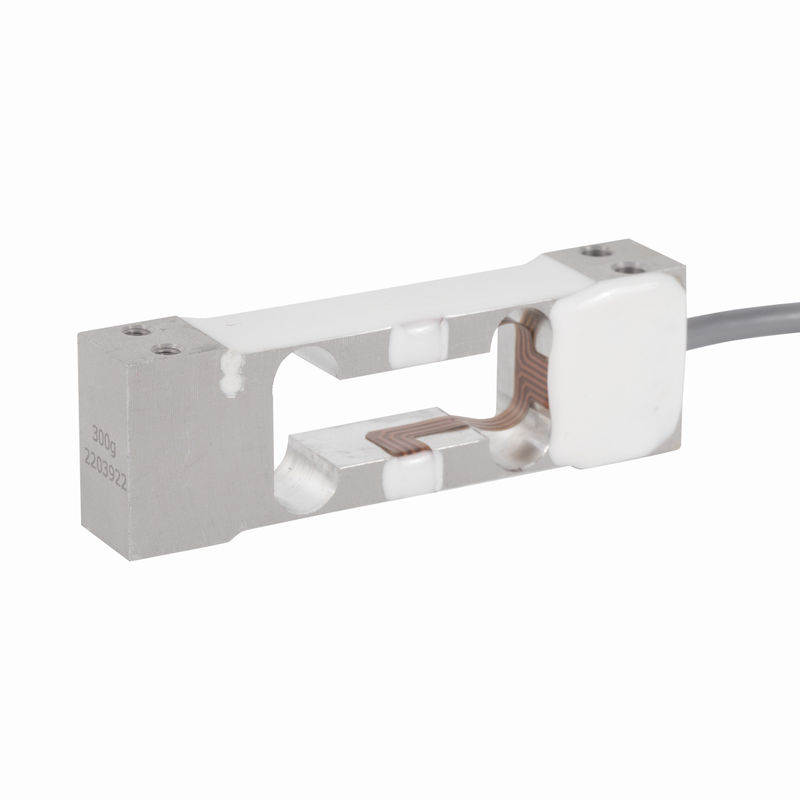

Miniature Single Point Load Cells For Precise Weighing Of Masses From 300g To 5kg - WL-112
Small size single point load cell WL-112 is made of aluminum alloy and is based on strain gauge technology. The WL-112 single point load cell is available in different options with maximum capacities ranging up to 5 kg. With its miniature size and extremely high accuracy, the WL-112 load cell is especially well-suited for batching, filling, and controlling tasks with small-sized packages, such as those used in the pharmaceutical, cosmetics, or food industries.
Miniature single point load cells can also be modified or customized to meet customer requirements. At BRANS, we understand that every application is unique and requires a tailored solution. Our customized service allows us to modify our product to fit your specific needs, ensuring maximum accuracy and reliability. With our customized service, we aim to provide you with the best possible solution for your unique application.
Features:
- Single point load cells
- Made of aluminum alloy
- For determining small weights (300g...5kg)
- High accuracy, compensated off-center load error
- Small size, easy to install
- Shielded connection cable
- IP65 protection, overload protection
- With compact design, ideal for platform sizes up to 200 x 200 mm
- Different cable lengths and other options available
Technical Parameters:
| Capacity |
300g/ 500g/ 1kg/ 2kg/ 3kg/5kg |
| Rated output |
1.0±10%mV/V (300g, 500g)
2.0±10%mV/V (1kg/ 2kg/ 3kg/ 5kg)
|
| Accuracy class |
C3 |
| Combined error |
±0.015%F.S. |
| Zero balance |
±2.0%F.S. |
| Non-linearity |
±0.015%F.S. |
| Hysteresis |
±0.015%F.S. |
| Repeatability |
±0.015%F.S. |
| Creep (30min) |
±0.0166%F.S. |
| Temperature effect on sensitivity |
±0.017%F.S./10℃ |
| Temperature effect on zero |
±0.02%F.S./10℃ |
| Input resistance |
380±40Ω |
| Output resistance |
380±40Ω |
| Insulation resistance |
≥5000MΩ/100VDC |
| Recommended excitation |
5-15VDC |
| Compensated temp. range |
-10~40℃ |
| Operation temp. range |
-25~70℃ |
| Safe overload |
150%F.S. |
| Ultimate overload |
300%F.S. |
| IP class |
IP65 (Customizable) |
| Cable size |
Φ4×400mm (Customizable) |
| Material |
Aluminum alloy |
| Nominal displacement |
＜0.5mm |
| Max.platform size |
200mm×200mm |
Dimensions (Unit:mm):
| Capacity |
A |
| 300g, 500g, 1kg |
12 |
| 2kg, 3kg, 5kg |
15 |
