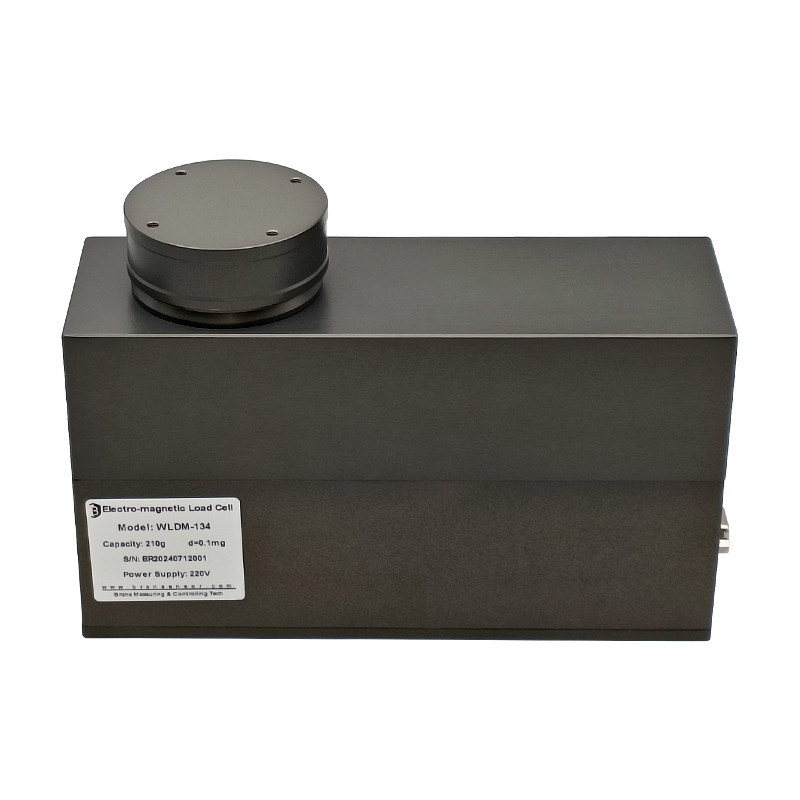

WLDM-134 High-Precision Electromagnetic Weighing Module For Micro Dispensing

WLDM-134 High-Precision Electromagnetic Weighing Module For Micro Dispensing

Features & Applications

• The WLDM-134 is an electromagnetic high-precision weighing module designed for capacities from 30g to 6100g. It offers mg-level resolution, external calibration function, settable module ID, real-time temperature compensation, adjustable stabilization time, and a seven-level anti-vibration filter. Integrated overload protection prevents equipment failure or damage from misoperation. A built-in digital collector and RS232 communication port allow direct connection to PLC and computer systems. The module is mainly used for batching, filling, and production quality control in micro-dispensing metering, medicine, cosmetics, food packaging, and other small package applications.

  This weighing module provides exceptional accuracy with readability starting from 0.01mg for low capacities (30g–100g) and up to 10mg for high capacities (3100g–6100g). Repeatability ranges from ±0.03mg to ±20mg, and linearity from ±0.03mg to ±30mg depending on the model. The electromagnetic force compensation principle ensures stable and reliable measurements, while the real-time temperature compensation maintains accuracy across varying environmental conditions.

  The module features a rugged housing with integrated overload protection. Its RS232 port enables seamless integration with PLCs, indicators, and computers. The seven-level anti-vibration filter and adjustable stabilization time make it suitable for dynamic weighing tasks in production lines. External calibration allows quick and easy verification without disassembly.





  Typical application scenarios

  • Micro-dispensing metering: precise control of small-volume liquids or powders

  • Pharmaceutical batching: dosing and quality control for medicine packaging

  • Cosmetics filling: filling machines for creams, lotions, and serums

  • Food packaging: weighing small packages of snacks, spices, or ingredients

  • Production quality control: checkweighers and sortation systems

  • Laboratory and research: mg-level precision weighing for delicate experiments







Specifications:

Capacity(g)	Readability(mg)	repeatability(mg)	Linearity(mg)
30	0.01	±0.03	±0.03
50	0.01	±0.03	±0.03
80	0.01	±0.03	±0.03
100	0.01	±0.03	±0.03
110	0.1	±0.1	±0.2
210	0.1	±0.1	±0.2
300	0.1	±0.2	±0.3
400	0.1	±0.2	±0.3
500	0.1	±0.2	±0.3
210	1	±1	±2
510	1	±1	±2
1000	1	±2	±3
1200	1	±2	±3
2000	1	±2	±3
3000	1	±2	±3
1100	10	±10	±20
2100	10	±10	±20
3100	10	±10	±20
4100	10	±10	±20
5100	10	±20	±20
6100	10	±20	±30

Data Acquisition:

Load Direction:
