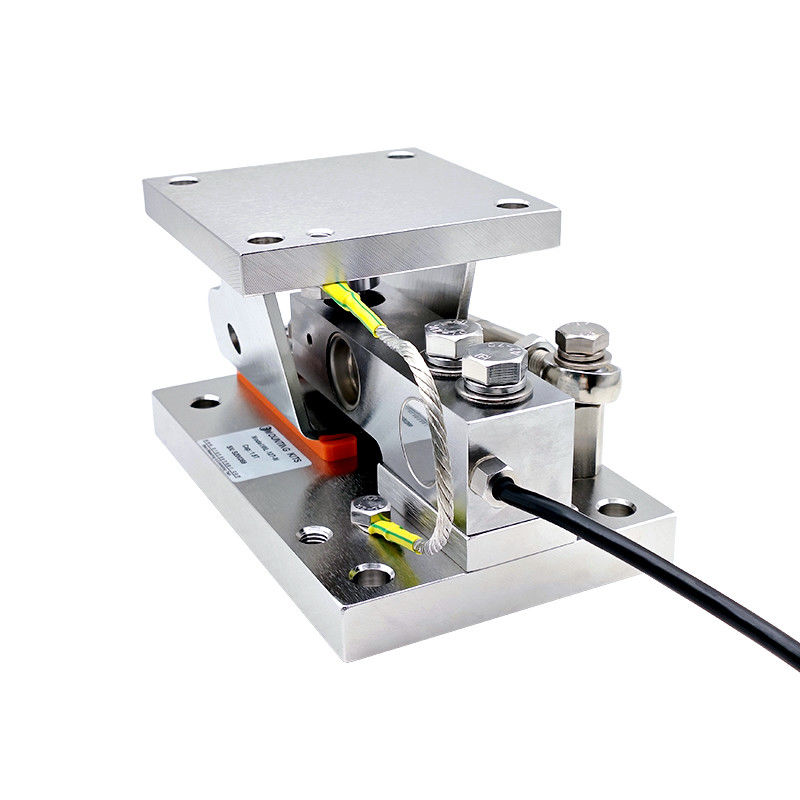

5kg~4400kg Precision Weigh Modules Compression Weigh Module

Accurate Stainless Steel Weighing Modules 5~4400kg- MK03

Product Description:

The MK03 weighing module includes two optional stabilisers and one Brans weighing load cell WL-127 to provide precise weighing system for tank scales,batching scales,and hopper scale. Each weigh module has the capacity to include up to two optional stabilizers, which are used to stabilize scales that are subjected to strong torque, heavy vibration, or in-motion weighing. The best weighing performance is made possible by the possibility of thermal expansion when stabililizers are implemented.


Features&Applications:

• Instantly ready to use
• With rocke pin design to enable precise measurement
• 0.11t~4.4t maximum load cell capacities
• Stainless steel shear beam load cell with IP68/IP 69K
• High stability owing to anti-liftoff device and stay rod
• Locked weigh module and load cell safeguarded during installation
• With calibration without test weights
• Different cable lengths,capcities, dimensions are optionally available

Dimension(MM):

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
