Highlight:
50 Gram Load Cell
, Electromagnetic Weighing Module
, 500 Gram Load Cell
Voltage: |
220VAC |
Working Principle: |
Electromagnetic Induction |
Applications: |
Ultra-precision Balances |
Cable: |
3000mm |
Usage: |
Batching,filling And Production Quality Control |
Advantages: |
High Accuracy |
Output Type: |
Digital |
Double Capacity+Accuracy: |
0g/0.01mg+100g/0.1mg; 50g/0.01mg+100g/0.1mg; 80g/0.01mg+120g/0.1mg; 100g/0.01mg+120g/0.1mg; 400g/0.1mg+120g/0.1mg |
Com.port: |
RS232 |
Display: |
LCD Large Inteface Display |
50 Gram Load Cell Electromagnetic Weighing Module 500 Gram Load Cell

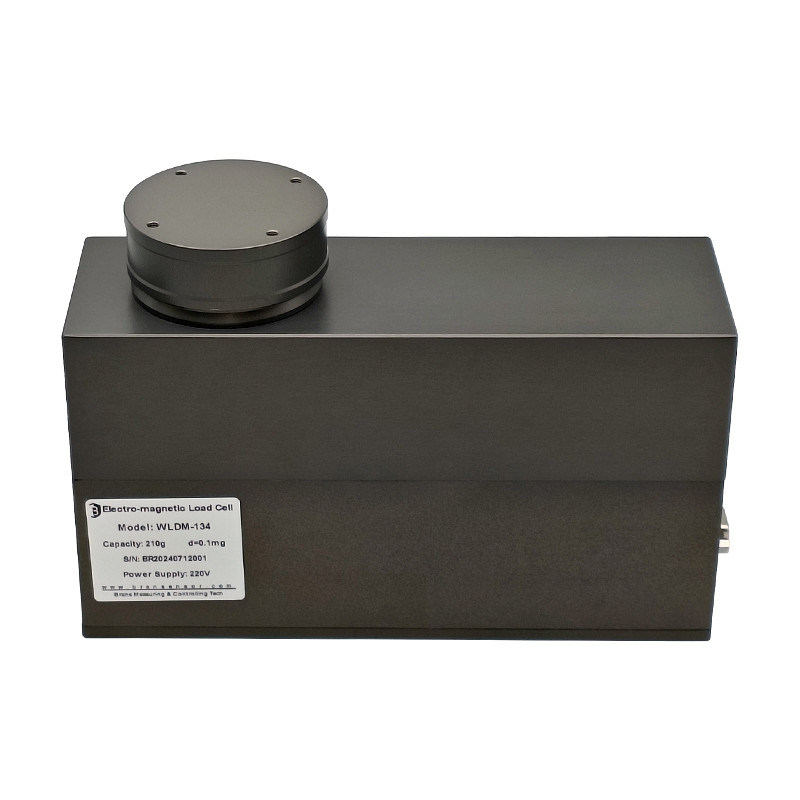

30g-6100g Electromagnetic Weighing Load Cell -WLDM-134
Overview:
The WLDM--134 is electro-magnetic load cell working on the principle of electromagnetic induction, which measures changes in force or weight by using a magnet and a coil of wire. It offers several advantages: high reliability, high resolution, and high accuracy. It is perfect for usage in challenging industrial situations because they are unaffected by changes in temperature or environmental conditions. The WLDM-134 comes in double capacity and accuracy with built-in RS232 communication interface, which enables direct connection with PLC and computer. The WLDM-134 finds applications in various industries, including manufacturing, automotive, aerosppace, and healthcare.
Features :
1. The best option for quick manufacturing procedures
2. Adaptable and simple integration thanks to a strong mechanical structure, dependable overload safety, and supplementary, adjustable dead load range
3. Automatic dual precision and range settings
4. The purpose of manual external calibration
5. The ability to adjust temperature in real time
6. An anti-static and anti-interference aluminum shell
7. A huge LCD interface display
8. Modifiable stability time for weighing
9. Different shielding units, include milligrams, ounces, and grams
10. The machine is currently locked on or off automatically.
11. An changeable built-in temperature, date, and time display feature
12. After installing the plug-in, the PC's balance data can be read immediately.
13. Provided with an RS232 connection for connecting auxiliary devices
Dimension(MM):
Specifications:
| Capacity(g) |
Readability(mg) |
repeatability(mg) |
Linearity(mg) |
|
30
|
0.01 |
±0.03 |
±0.03 |
| 50 |
0.01 |
±0.03 |
±0.03 |
| 80 |
0.01 |
±0.03 |
±0.03 |
| 100 |
0.01 |
±0.03 |
±0.03 |
| 110 |
0.1 |
±0.1 |
±0.2 |
| 210 |
0.1 |
±0.1 |
±0.2 |
| 300 |
0.1 |
±0.2 |
±0.3 |
| 400 |
0.1 |
±0.2 |
±0.3 |
| 500 |
0.1 |
±0.2 |
±0.3 |
| 210 |
1 |
±1 |
±2 |
| 510 |
1 |
±1 |
±2 |
| 1000 |
1 |
±2 |
±3 |
| 1200 |
1 |
±2 |
±3 |
| 2000 |
1 |
±2 |
±3 |
| 3000 |
1 |
±2 |
±3 |
| 1100 |
10 |
±10 |
±20 |
| 2100 |
10 |
±10 |
±20 |
| 3100 |
10 |
±10 |
±20 |
| 4100 |
10 |
±10 |
±20 |
| 5100 |
10 |
±20 |
±20 |
| 6100 |
10 |
±20 |
±30 |
Data Acquisition:
Load Direction:
Load Cell Packaging and Shipping
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
