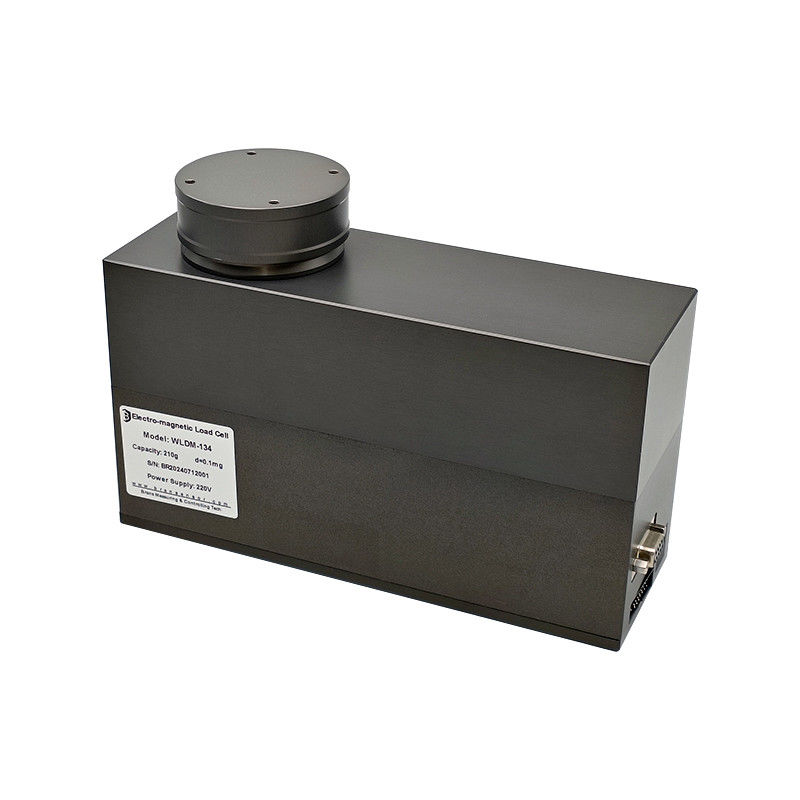

Electromagnetic Loadcell Module 30g-6100g Weighing Scale Module

Name: Electromagnetic Loadcell Module 30g-6100g Weighing Scale Module
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WLDM-134
Price: 1,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Model Number: WLDM-134

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Electromagnetic Loadcell Module, 6100g Weighing Scale Module, Loadcell Module 30g


Product Type:	Electromagnetic Load Cell	Linearity:	0.03/0.2/0.3/2/3/20/30mg
Material:	Metal Shell	Suring Range:	30g-6100g
Readability:	0.01/0.1/1/10mg	Communication Protocol:	RS232
Feature:	Real-time Temperature Compensation	Supply Voltage:	220VAC

Product Type:	Electromagnetic Load Cell
Linearity:	0.03/0.2/0.3/2/3/20/30mg
Material:	Metal Shell
Suring Range:	30g-6100g
Readability:	0.01/0.1/1/10mg
Communication Protocol:	RS232
Feature:	Real-time Temperature Compensation
Supply Voltage:	220VAC

Electromagnetic Loadcell Module 30g-6100g Weighing Scale Module

High-precision Electromagnetic Load Cell For 30g-6100g Capacity -WLDM-134

Features and Applications:

● Features &Applications

● Electromagnetic high-precision weighing module
● With capacities from 30g to 6100g
● With high precision and mg-level resolution
● External calibration function
● Module ID can be set
● Real-time temperature compensation
● Weighing stabilization time can be adjusted
● Seven-level anti-vibration filter can be adjusted
● With integrated overload protection to avoid equipmentfailure or misoperation damage
● With built-in digital collector,RS232 communicationport,can be directly connected with PLC and computer
● Mainly used for batching,filling and production qualitycontrol of micro-dispensing metering,medicine,cosmetics,food packaging and other small packages

Dimension(MM):

Electromagnetic Loadcell Module 30g-6100g Weighing Scale Module 0

Specifications:

Capacity(g)	Readability(mg)	repeatability(mg)	Linearity(mg)
30	0.01	±0.03	±0.03
50	0.01	±0.03	±0.03
80	0.01	±0.03	±0.03
100	0.01	±0.03	±0.03
110	0.1	±0.1	±0.2
210	0.1	±0.1	±0.2
300	0.1	±0.2	±0.3
400	0.1	±0.2	±0.3
500	0.1	±0.2	±0.3
210	1	±1	±2
510	1	±1	±2
1000	1	±2	±3
1200	1	±2	±3
2000	1	±2	±3
3000	1	±2	±3
1100	10	±10	±20
2100	10	±10	±20
3100	10	±10	±20
4100	10	±10	±20
5100	10	±20	±20
6100	10	±20	±30

Data Acquisition:

Load Direction:

Electromagnetic Loadcell Module 30g-6100g Weighing Scale Module 2

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
