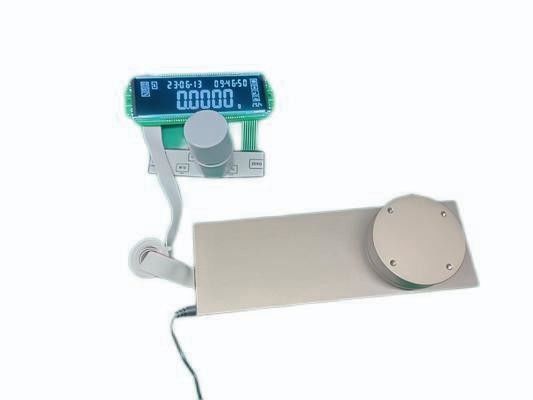

0-500g Load Cell Weighing Load Sensor Electromagnetic Load Cell

Name: 0-500g Load Cell Weighing Load Sensor Electromagnetic Load Cell
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WLDM-134
Price: 1500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Certification: RoHS

Model Number: WLDM-134

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $1500

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: T/T, , L/C, Western Union, MoneyGram

Supply Ability: 1000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Weighing Load Sensor, 0-500g Load Cell, 500g Electromagnetic Load Cell


Features:	Reliable/Precise/Fast	Capacity / Accuracy:	110g/0.1mg; 210g/0.1mg; 310g/0.1mg; 500g/0.1mg; 1200g/1mg; 2000g/1mg; 3000g/1mg; 1100g/10mg; 2100g/10mg; 3100g/10mg
Power Supply:	220VAC	Communication Port:	RS232 (Modbus-TCP Protocol)
Operation Temp Range:	5-40℃	Material:	Aluminum Alloy
Max. Platform Size:	Circular Platform: Φ54mm; Square Platform:58*58mm	Type:	Electromagnetic
Output Signal Type::	Digital Output	HS Code:	9031809090
Warranty:	12 Months

Features:	Reliable/Precise/Fast
Capacity / Accuracy:	110g/0.1mg; 210g/0.1mg; 310g/0.1mg; 500g/0.1mg; 1200g/1mg; 2000g/1mg; 3000g/1mg; 1100g/10mg; 2100g/10mg; 3100g/10mg
Power Supply:	220VAC
Communication Port:	RS232 (Modbus-TCP Protocol)
Operation Temp Range:	5-40℃
Material:	Aluminum Alloy
Max. Platform Size:	Circular Platform: Φ54mm; Square Platform:58*58mm
Type:	Electromagnetic
Output Signal Type::	Digital Output
HS Code:	9031809090
Warranty:	12 Months

0-500g Load Cell Weighing Load Sensor Electromagnetic Load Cell

High-Precision Electromagnetic Load Cell For High-speed Production Processes--WLDM-134

Datasheet:

Capacity

Double Range

Single Range

30g

100g

50g

100g

80g

120g

100g

120g

400g

120g

110g/210g/310g/500g

1.2kg/2kg/3kg

1.1kg/2.1kg/3.1kg

Accuracy

0.01mg

0.1mg

0.01mg

0.1mg

0.01mg

0.1mg

0.01mg

0.1mg

1mg

10mg

Repeatability

0.01mg

0.1mg

0.01mg

0.1mg

0.01mg

0.1mg

0.01mg

0.1mg

1mg

10mg

Linearity

0.02mg

0.2mg

0.02mg

0.2mg

0.02mg

0.2mg

0.02mg

0.2mg

2mg

10mg

Features:

1. The superior solution for high-speed production processes
2. Flexible and easy integration through robust mechanical design, reliable overload protection, additional and flexible dead load reange
3. Automatic double range and double precision function
4. Manual external calibration function
5. Real time temperature compensation function
6. Anti interference and anti-static metal shell
7. LCD large interface display
8. Adjustable weighing stability time
9. Various shielding units such as gram, milligram and ounce
10. Current mode of automatic locking of the machine on /off
11. Built-in date, time and temperature display adjustable function
12. Install the plug-in, and the balance data on the PC can be read directly
13. Equipped with RS232 communication port to connect peripheral equipment

Dimensions (in mm):

0-500g Load Cell Weighing Load Sensor Electromagnetic Load Cell 0
