Digital Platform Scale 150kg 300kg 500kg Platform Precision Scale

Name: Digital Platform Scale 150kg 300kg 500kg Platform Precision Scale
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: PF/PFS
Price: 750.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Model Number: PF/PFS

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                digital platform scale 150kg, digital platform scale 300kg, digital platform scale 500kg


Connectivity:	RS232	Material Of Scale Body:	Stainless Steel/ Carbon Steel Spray
Material Of Indicator:	ABS Plastic	Display Type:	6 Digitals 20mm LED
Application:	Industrial Scales, Commercial Scale, Special Scales	Function:	Weighing Scale, Counting Scales
Shape:	Square	HS Code:	9031809090

Connectivity:	RS232
Material Of Scale Body:	Stainless Steel/ Carbon Steel Spray
Material Of Indicator:	ABS Plastic
Display Type:	6 Digitals 20mm LED
Application:	Industrial Scales, Commercial Scale, Special Scales
Function:	Weighing Scale, Counting Scales
Shape:	Square
HS Code:	9031809090

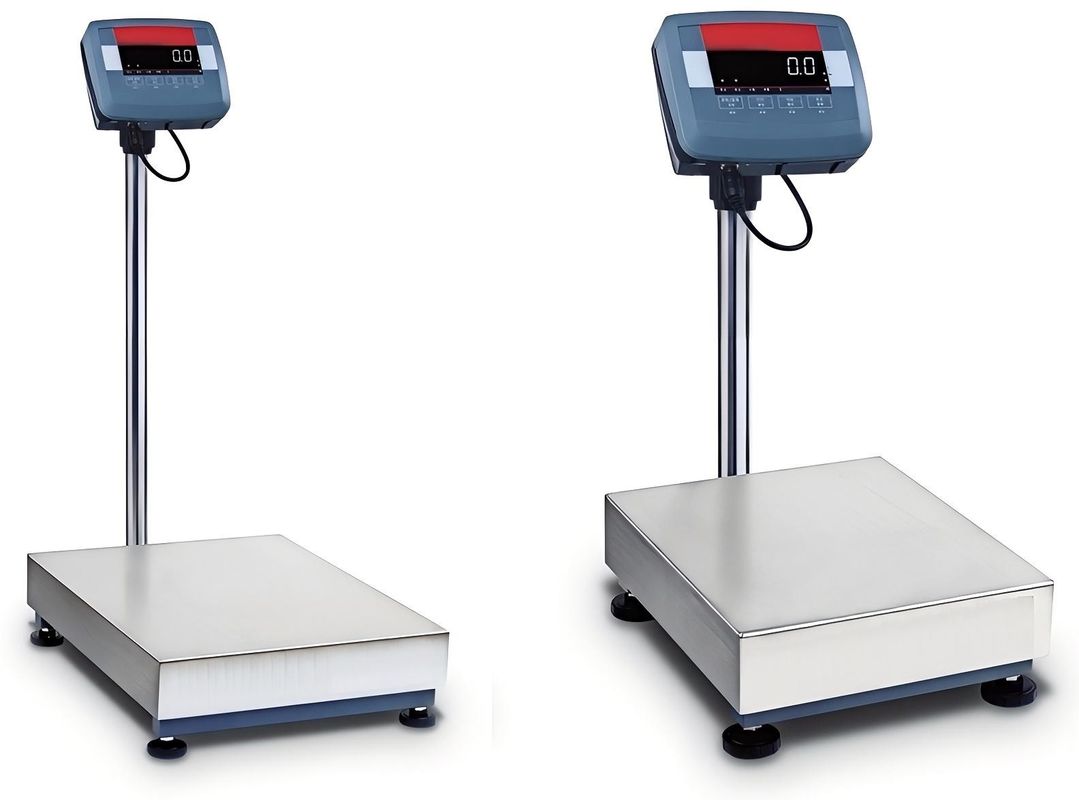

Digital Platform Scale 150kg 300kg 500kg Platform Precision Scale

Stainless Steel LED Display Digital Platform Scale with High Accuracy

Overview:

The PF series platform scale come in different dimensions(you may refer to the selection table below), offering 30-600kg weighing for ultimate performance and endurance. It is equipped with 6-digit 20mm highlight LED display, and RS232 Serial port to connect to printer,large screen,computer.

Datasheet:

Type	PF/PFS
Display	6-digit 20mm highlight LED display
Weighing Module	Weighing, Counting, Accumulating
Battery	Charging for 12 hours, continuous use for 80 hours
Key	4 mechanical buttons
Accuracy	III Class
Power	220VAC/50 Hz Built-in transformer, rechargeable lead-acid battery
DC power supply	6VDC/4.5AH Lead-acid rechargeable battery
Operation Temp.	-10~40ºC
Unit Conversion	Kg, g
Communication Port	RS232 Serial port can be connected to printer, large screen, computer
Safe Overload	150%Emax
Accuracy Class	IP66
Material of indicator	ABS Plastic
Material of platform	304 Stainless Steel
Material of scale body	Stainless Steel/ Carbon Steel Spray

Selection table: (3040 mean the platform 30cm*40cm)

serial	Model/Specification	Maximum weighing (kg)	Table size(mm)	Counts(d)	Division(g)	Note
1	PF/PFS3040-30kg	30	300×400	6000	5	Carbon steel spray-coated scale frame, model PF; stainless steel scale frame model PFS, scale pans are all stainless steel
2	PF/PFS3040-60kg	60	300×400	6000	10
3	PF/PFS4050-60kg	60	400×500	6000	10
4	PF/PFS4050-150kg	150	400×500	7500	20
5	PF/PFS5065-150kg	150	500×650	7500	20
6	PF/PFS5065-300kg	300	500×650	6000	50
7	PF/PFS6080-300kg	300	600×800	6000	50
8	PF/PFS6080-600kg	600	600×800	6000	100
