Highlight:
                                                                                                                                                                                                                                                                                                                RS232 Weighing Scale, Weighing Scale 15kg, 150kg Platform Weighing Scales


Accuracy:	C3	Weighing:	15-150kg
Display Type:	6 Digitals 20mm LED	Application:	Industrial Scales, Commercial Scale, Special Scales
Function:	Weighing Scale, Counting Scales	Shape:	Square
HS Code:	9031809090	Unit:	Kg, G

Accuracy:	C3
Weighing:	15-150kg
Display Type:	6 Digitals 20mm LED
Application:	Industrial Scales, Commercial Scale, Special Scales
Function:	Weighing Scale, Counting Scales
Shape:	Square
HS Code:	9031809090
Unit:	Kg, G

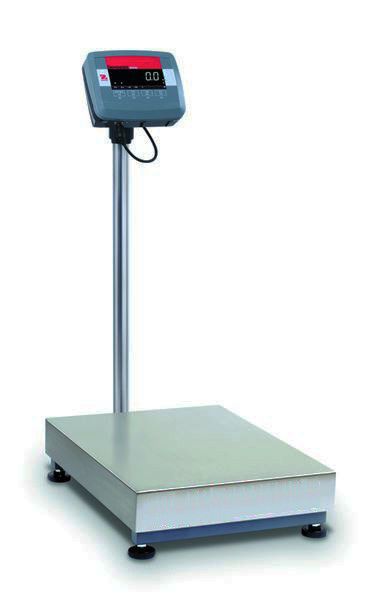

RS232 Weighing Scale 15kg-150kg Platform Weighing Scales C3 Accuracy

PF Series Platform Scales with LED Display and RS232 Serial Interface

Features:

With 6-digit 20mm highlight LED display

Three weighing mode: weighing, counting,accumulating

Charging for 12 hours,continuous use for 80 hours

With C3 accuracy

With minimal deck deflection

Datasheet:

Type	PF/PFS
Display	6-digit 20mm highlight LED display
Weighing Module	Weighing, Counting, Accumulating
Battery	Charging for 12 hours, continuous use for 80 hours
Key	4 mechanical buttons
Accuracy	III Class
Power	220VAC/50 Hz Built-in transformer, rechargeable lead-acid battery
DC power supply	6VDC/4.5AH Lead-acid rechargeable battery
Operation Temp.	-10~40ºC
Unit Conversion	Kg, g
Communication Port	RS232 Serial port can be connected to printer, large screen, computer
Safe Overload	150%Emax
Accuracy Class	IP66
Material of indicator	ABS Plastic
Material of platform	304 Stainless Steel
Material of scale body	Stainless Steel/ Carbon Steel Spray

Selection table: (3040 mean the platform 30cm*40cm)

serial	Model/Specification	Maximum weighing (kg)	Table size(mm)	Counts(d)	Division(g)	Note
1	PF/PFS3040-30kg	30	300×400	6000	5	Carbon steel spray-coated scale frame, model PF; stainless steel scale frame model PFS, scale pans are all stainless steel
2	PF/PFS3040-60kg	60	300×400	6000	10
3	PF/PFS4050-60kg	60	400×500	6000	10
4	PF/PFS4050-150kg	150	400×500	7500	20
5	PF/PFS5065-150kg	150	500×650	7500	20
6	PF/PFS5065-300kg	300	500×650	6000	50
7	PF/PFS6080-300kg	300	600×800	6000	50
8	PF/PFS6080-600kg	600	600×800	6000	100
