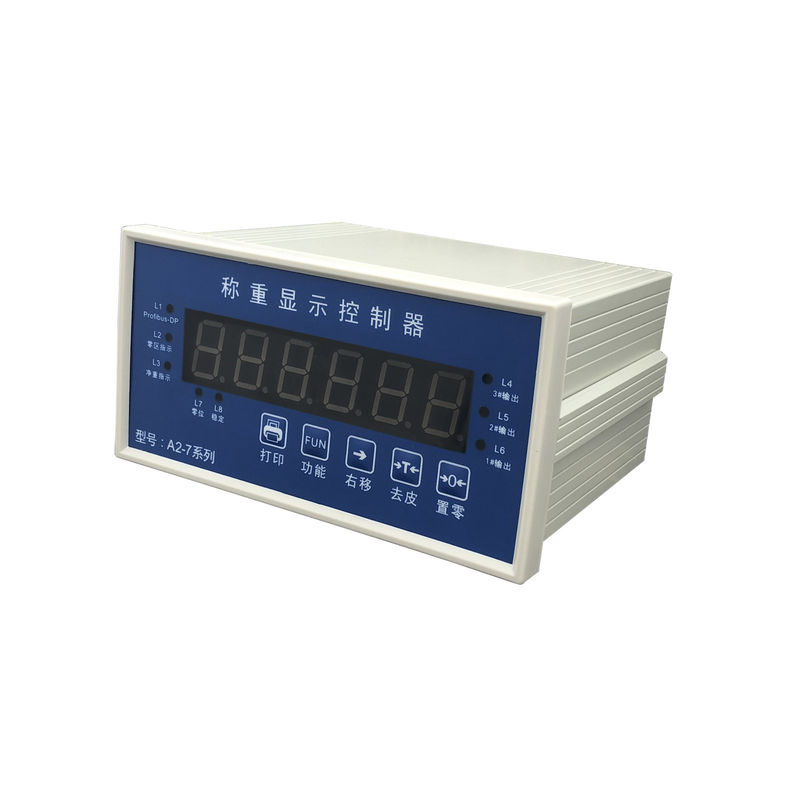

RS485 Display Weight Indicator Aluminum Housing Weighing Controller

RS-485 Aluminum Housing Weighing Indicator For Weighing Controlling -BXK315A2-7

1. Basic features

1. 0.8 inch 6-digit red LED display

2. Aluminum housing

3. Dimensions:160×83×146 mm

4. Weight: 1kg

5. AC 100-240V power supply

6.  ∑Δ type A/D converter, A/D resolution better than 1,000,000.

7. A/D conversion rate10 times/80 times per second optional
8. Bridge supply voltage DC5V, can connect 4 *350 Ω sensors or 8 *700 Ω sensors.

9. Division: 1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/1 0/20/50/100/200/500/0.10/0.20/0.50/0.010/0.020/0.050
9. 4-20mA analog current output/0-10V analog voltage output

10. 8-way relay output, 4-way isolated switch input
11. Two independent isolated RS485 bidirectional communication/isolated RS232C continuous unidirectional output

12.Optional Profibus-DP, Modbus RTU and Modbus TCP

13.Software version:  4.0X - supports Profibus-DP communication
                                   5.0X - supports Modbus RTU communication
                                   6.0X - supports Modbus TCP communication

2. Specifications

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
