Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326

Name: Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WI-326
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Certification: CE, RoHS

Model Number: WI-326

Document: WI-326 Axle Weighing Indica...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Packaging Details: Packing Size: 50×40×20 cm (1pc)、Packing Weight: 6kg (1pcs)

Delivery Time: 1 week

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Portable weighing indicator with printer, 9-axle totalization weighing indicator, Axle weighing indicator with warranty


Power:	100-240V~ 12V Adaptor	Display:	LCD With Backlit
Rechargeable Battery:	6V12Ah	Estimated Battery Life:	Estimated Battery Life
Charge Time:	Charge Time	Units:	Kg / Lb
Excitation Voltage:	DC5V	Load Cell Support:	Up To 16×350Ω Or 32×700Ω
Input Signal:	0-10mV/V	A/D Rate:	8 Times/second
Display Resolution:	1/3,000	Relative Humidity:	≤85% Non-condensing
Operating Temperature:	-10℃ To 40℃	Storage Temperature:	-25℃ To 55℃

Power:	100-240V~ 12V Adaptor
Display:	LCD With Backlit
Rechargeable Battery:	6V12Ah
Estimated Battery Life:	Estimated Battery Life
Charge Time:	Charge Time
Units:	Kg / Lb
Excitation Voltage:	DC5V
Load Cell Support:	Up To 16×350Ω Or 32×700Ω
Input Signal:	0-10mV/V
A/D Rate:	8 Times/second
Display Resolution:	1/3,000
Relative Humidity:	≤85% Non-condensing
Operating Temperature:	-10℃ To 40℃
Storage Temperature:	-25℃ To 55℃

Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326

Product Title

Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326

Specifications

Power	100-240V~ 12V Adaptor
Display	LCD with Backlit
Rechargeable Battery	6V12Ah
Estimated Battery Life	40 hours
Charge Time	8 hours
Units	Kg / lb
Excitation Voltage	DC5V
Load Cell Support	Up to 16×350Ω or 32×700Ω
Input Signal	0-10mV/V
A/D Rate	8 times/second
Protection	IP54
Relative Humidity	≤85% non-condensing

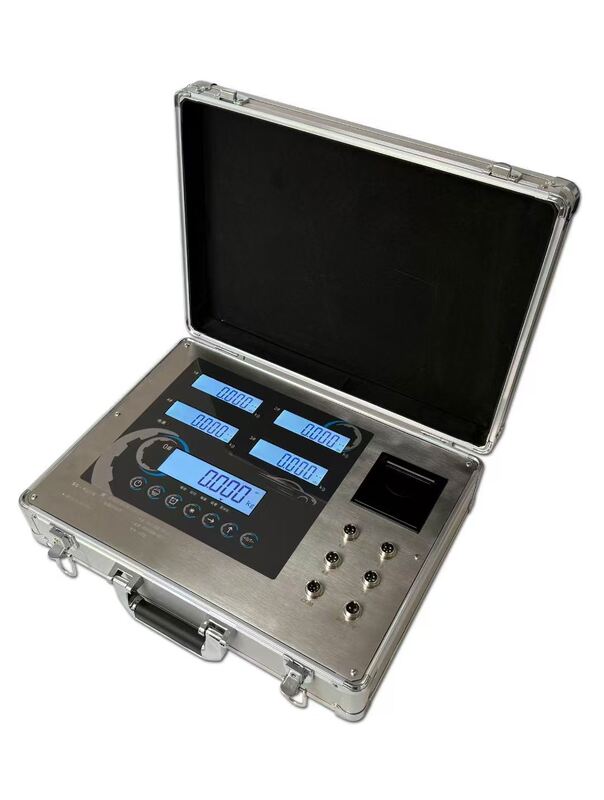

Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326 0

Portable Axle Weighing Indicator with 9-Axle Totalization & Printer WI-326 1

Product Description
This versatile axle weighing indicator is suitable for both single and dual axle applications. It supports up to 9 axles totalization and is compatible with 1 to 4 wheels per axle. The device features a built-in thermal printer, RS232 output, and optional wireless communication. It operates in a wide temperature range and is protected with IP54 rating. The system is powered by a rechargeable 6V12Ah battery and comes in a compact aluminum suitcase for easy transport.

Advantages

Supports up to 9 axles with total weight calculation
Two working modes: single axle (1-2 wheels) and double axle (3-4 wheels)
High-resolution display with backlit LCD
Durable and portable aluminum case
Optional WiFi/Bluetooth for remote monitoring
Fast and accurate readings with 8 times/sec A/D rate

Instruction

Choose the appropriate working mode based on axle configuration.
Connect the load cells and ensure stable placement.
Drive the vehicle onto the platform at low speed.
Record the weight for each axle and view totalized results.
Print the weigh ticket or transfer data via RS232 or wireless.
Store the system in the aluminum case after use.
