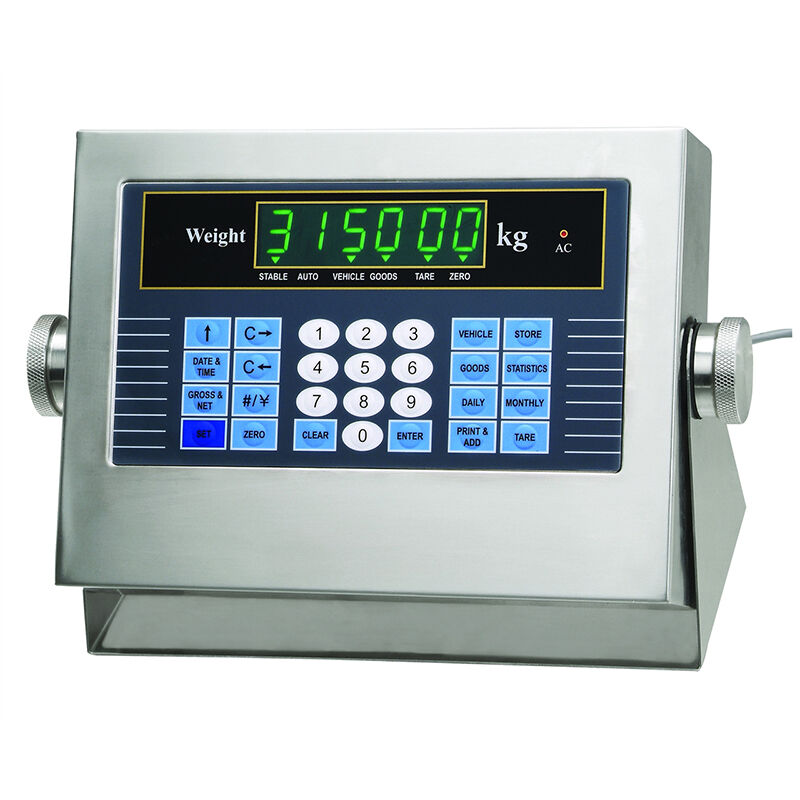

BXK315A6GB Heavy-Duty Indicator For Vehicle And Goods Weighing

Features

• 1. This robust weighing indicator is designed for operation from 0°C to 40°C.

  2. The indicator can be safely stored in temperatures ranging from -25°C to 55°C.

  3. Engineered for durability, this weighing indicator operates in relative humidity up to 85% non-condensing.

  4. For large-scale applications, the indicator can drive up to 8x350Ω or 16x700Ω load cells.

  5. Maintenance is simplified as the weighing indicator can be replaced without the need for recalibration.

  6. Precision is ensured through a comprehensive four-point calibration process for this indicator.

  7. The weighing indicator features a low battery warning and an automatic power-off function.

  8. For commercial use, the indicator can store and recall up to 10 different unit prices.

  9. System protection is provided by a display lock when overload exceeds 130% FS on this indicator.

  10. Measurement precision can be enhanced tenfold with this advanced weighing indicator.

  11. Real-time shock detection and programmable date-lock functions secure the data on this indicator.

  12. The weighing indicator manages large fleets, storing up to 200 vehicle numbers and tares.

  13. Comprehensive data logging is possible with storage for 1000 weighing records and reports on this indicator.

  14. The indicator classifies statistics by both vehicle and goods number for detailed analysis.

  15. Reporting is flexible with daily and monthly statistical reports generated by the weighing indicator.

  16. Customizable printouts are available with selectable fill-in form printing from this indicator.

  17. For external documentation, a parallel interface connects to 24-pin dot matrix printers via this indicator.

  18. Standard connectivity includes an RS232 serial interface on the weighing indicator.

  19. Network expansion is possible with an optional RS485 serial interface for this indicator.

  20. The weighing indicator supports selectable weight units (kg and t) for various applications.

  21. A built-in micro printer is available as a standard feature of this all-in-one weighing indicator.

Dimensions(mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
