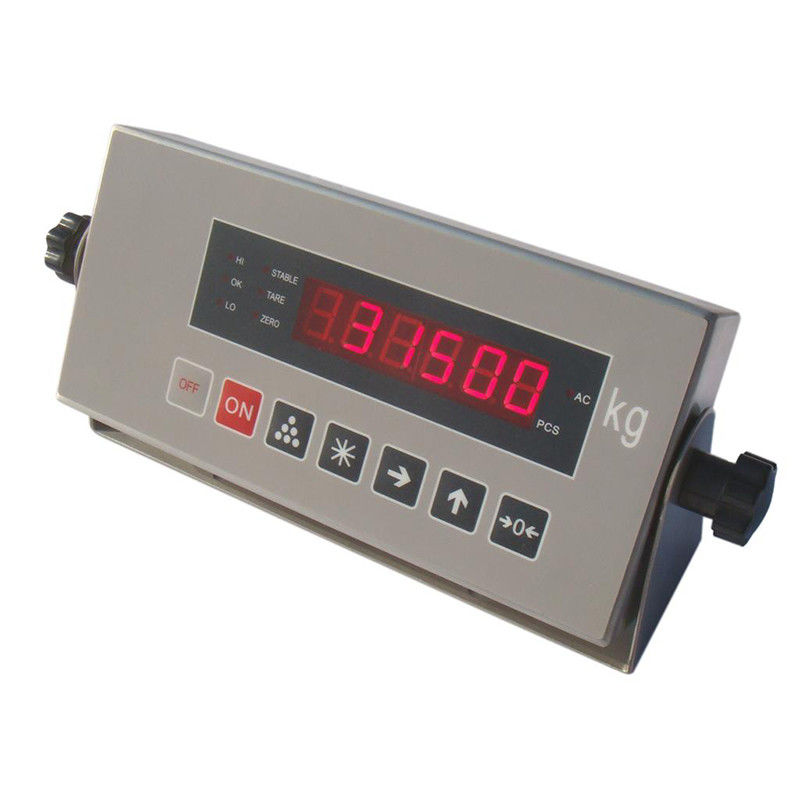

RS232 Floor Scale Indicator OIML Approved Weighing Scale Indicator

Name: RS232 Floor Scale Indicator OIML Approved Weighing Scale Indicator
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: BXK315A1-21F
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Certification: OIML, CE

Model Number: BXK315A1-21F

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                RS232 Floor Scale Indicator, Weighing Scale Indicator


Display Type:	LED	Screen:	6-Digit 20.2mm Green LED
Specification:	275 X 160 X 120 Mm	Display Digits:	6 Digits
Weight:	1.6 Kg	Rechargeable Internal Battery:	6V/2.8AH
Full Charge Battery Operation:	20 Hours	Full Charge Battery Recharge Time:	12 Hours

Display Type:	LED
Screen:	6-Digit 20.2mm Green LED
Specification:	275 X 160 X 120 Mm
Display Digits:	6 Digits
Weight:	1.6 Kg
Rechargeable Internal Battery:	6V/2.8AH
Full Charge Battery Operation:	20 Hours
Full Charge Battery Recharge Time:	12 Hours

RS232 Floor Scale Indicator OIML Approved Weighing Scale Indicator

RS-232 OIML Approved Weighing Indicator For Floor Scale-BXK315A1-8

1.Basic feature

1. 20 hours of full charge battery operation

2. Operating temperature:0℃—40℃

3. 40 times/second A/D conversion speed

4. RS-232 serial output communication interface

5. HI/OK/LO set point

6. Animal scale function

7. Connect 1~4 350Ω sensors or 1~8 700Ω sensors

8. Filter time settings are adjustable

9. Connect with printer

10. Division: 1/2/5/10/20/50/0.1/0.2/0.5/0.01/0.02/0.05/0.001/ 0.002/0.005 optional

11. Display accuracy: 1/3000------1/30000

2. Expandable features

1. Optional 4G transmission

2. Optional RS-485 serial interface

3. Optional bluetooth/Wi-Fi communication

4. Optional two/four set-point output function

5. Optional 4-20mA analog output function

6. Optional mechanical scale function

3. Specifications
