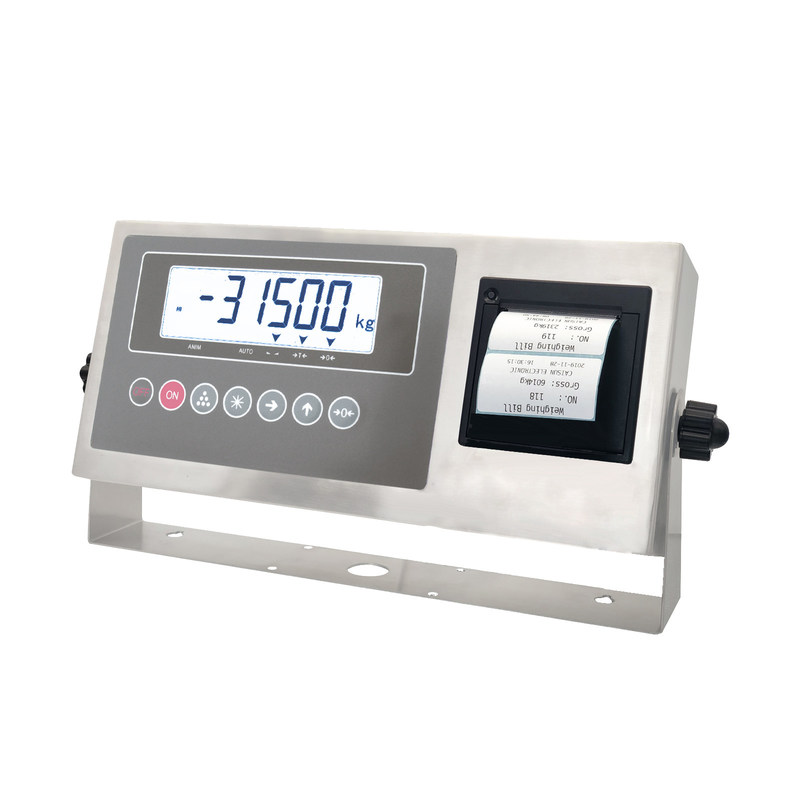

LCD Display Weighing Indicator 1 Inch Electronic Scale Indicator

Name: LCD Display Weighing Indicator 1 Inch Electronic Scale Indicator
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: BXK315A1GB-5-LP-BQ
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Certification: OIML

Model Number: BXK315A1GB-5-LP-BQ

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                LCD Display Weighing Indicator, Electronic Scale Indicator


Applications:	Electronic Plaform Scale And Weighing Scale	Shell:	Stainless Steel Square Housing
AC Voltage:	100V~240V	A/D Conversion Rate:	40 Times/second
A/D Resolution:	100000	Humidity:	10% To 85% Non-condensing
Input Load:	4 X 350 Ω Load Cells 8 X 700 Ω Load Cells	Operation Temp. Range:	0 °C To +40 °C

Applications:	Electronic Plaform Scale And Weighing Scale
Shell:	Stainless Steel Square Housing
AC Voltage:	100V~240V
A/D Conversion Rate:	40 Times/second
A/D Resolution:	100000
Humidity:	10% To 85% Non-condensing
Input Load:	4 X 350 Ω Load Cells 8 X 700 Ω Load Cells
Operation Temp. Range:	0 °C To +40 °C

LCD Display Weighing Indicator 1 Inch Electronic Scale Indicator

1-inch 6-digit LCD Weighing Indicator For Platform Scales And Floor Scale-BXK315A1GB-5-LP-BQ

Features and Functions:

40 times/second A/D conversion rate
1-inch 6-digit LCD display
Drive up 1-4 350Ω or 1-8 700Ω sensors
Storage and transportation temperature -25℃— +55℃
Manual/automatic accumulation function
Battery can be used continuously for more than 30 hours if sufficient
Zero tracking range can be selected
Power saving mode is optional
Filter time parameters can be set
Support kg-lb conversion
Improve 10 times the display accuracy
Peak hold function and counting function
Built-in thermal/label printer
LO-OK-HI three-zone fixed value display
Optional backlight mode: always on, power saving, off

Specifications:

Display	1-inch 6-digit LCD
Accuracy class	1/3000------1/30000
A/D resolution	100000
	40 times/second
Graduation value	1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/ 10/20/50/100/200/500/0.10/0.20/0.50/0.010/0.020/0.050
Input Load	4 x 350 Ω load cells 8 x 700 Ω load cells
Print	Built-in thermal printer
AC power supply	AC 220V 50 Hz, AC/DC dual-purpose, built-in battery
Full charge battery operation	30 hours
Operation temp. range	0 °C to +40 °C
Storage temperature	–25 °C to +55 °C
Humidity	10% to 85% non-condensing
Dimension(LWH)	320 x 148 x 67 mm
Material	Plastic
Cable connection	6 wires
Weight	2.7kg

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
