Highlight:
Wireless Weight Indicator
, Wireless Scale Indicator
Display: |
6-digit 0.8 Inches Green LED |
Wireless Communication Frequency: |
430 MHz |
Wireless Communication Distance: |
100m/1000m (optional) |
Wireless Communication Rate: |
9600bps |
Division: |
1/2/5/10/20/50/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005 (optional) |
Serial Interface: |
RS232 Interface With Continuous Data Output Baud Rate 1200, 2400, 4800, 9600 Optional RS485 Interface |
Connect By RS232: |
Display, Computer, Printer, Etc. |
Weight Unit: |
Kg/lb/UU (user Unit Should Be Set In Factory) |
Decimal /Hexadecimal: |
Lb And UU Can Be In Two Systems |
External AC Adapter: |
100-240VAC 50/60Hz |
Rechargeable Internal Battery: |
6V/4AH |
Keyboard: |
7 Touch Buttons |
Operation Temp Range: |
-10°~ 40°C |
Storage Temperature: |
–25 °C To +55 °C |
Relative Humidity: |
10% To 85% Non-condensing |
Material: |
304 Stainless Steel Housing |
Dimension (L*W*H): |
260mm×222mm×161mm |
HS Code: |
9026209090 |
Warranty: |
12 Months |
Application: |
Electeonic Platform Scale And Weighing Scale, Etc. |
Wireless Scale Indicator High Precision Wireless Weight Indicator

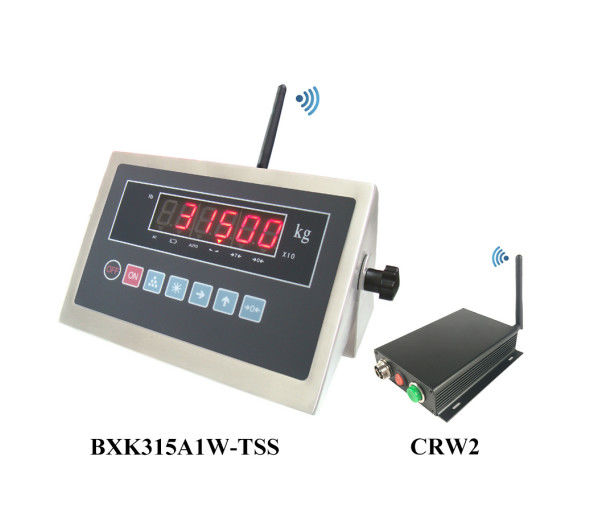

High-Precision Wireless Weighing Indicator--BXK315A1W-TSS
Descriptions:
The BXK315A1W-TSS wireless weighing indicator, with RS232 communication interface, can be connected with display, computer, printer, etc. And it can drive two CRW2 wireless weighing transmitter, the wireless communication distance can up to 100m or 1000m, and it can accurately realize the conversion, display and transmission of weight signals. It is suitable for electronic platform scale, weighing scale, etc.
Features:
1. Wireless connection with load cell, and the wireless communication distance 100m and 1000m optional;
2. 6-digit 0.8 inches red LED display, 7 control buttons, easy to operation and easy to set;
3. CRW2 wireless transmitter can drive up 4X350Ω or 8X700Ω load cell and one BXK315A1W-TSS can drive two CRW2 transmitters;
4. Standard with RS232 serial interface, which can be connected to display, compute, printer, etc. And RS485 serial interface is optional;
5. Manual/Automatic accumulation, Programmable zero tracking, Programmable digital filter, Animal weighing, Hold function, Counting function etc.
6. Two / four set point function, 4-20mA analog current output function, mechanical scale, etc. are optional;
7. Application areas:
Suitable for electronic platform scale, weighing scale, etc.
Application Diagram:
