Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326

Name: Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WI-326
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Brans

Certification: CE, RoHS

Model Number: WI-326

Document: WI-326 Axle Weighing Indica...NS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Packaging Details: Packing Size: 50×40×20 cm (1pc)、Packing Weight: 6kg (1pcs)

Delivery Time: 1 week

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Industrial weighing indicator with printer, Digital weighing indicator multi-platform input, Weighing indicator WI-326 with warranty


Power:	100-240V~ 12V Adaptor	Display:	LCD With Backlit
Rechargeable Battery:	6V12Ah	Estimated Battery Life:	Estimated Battery Life
Charge Time:	Charge Time	Units:	Kg / Lb
Excitation Voltage:	DC5V	Load Cell Support:	Up To 16×350Ω Or 32×700Ω
Input Signal:	0-10mV/V	A/D Rate:	8 Times/second
Display Resolution:	1/3,000	Relative Humidity:	≤85% Non-condensing
Operating Temperature:	-10℃ To 40℃	Storage Temperature:	-25℃ To 55℃

Power:	100-240V~ 12V Adaptor
Display:	LCD With Backlit
Rechargeable Battery:	6V12Ah
Estimated Battery Life:	Estimated Battery Life
Charge Time:	Charge Time
Units:	Kg / Lb
Excitation Voltage:	DC5V
Load Cell Support:	Up To 16×350Ω Or 32×700Ω
Input Signal:	0-10mV/V
A/D Rate:	8 Times/second
Display Resolution:	1/3,000
Relative Humidity:	≤85% Non-condensing
Operating Temperature:	-10℃ To 40℃
Storage Temperature:	-25℃ To 55℃

Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326

Product Title

Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326

Specifications

Power	100-240V~ 12V Adaptor
Display	LCD with Backlit
Rechargeable Battery	6V12Ah
Estimated Battery Life	40 hours
Charge Time	8 hours
Units	Kg / lb
Excitation Voltage	DC5V
Load Cell Support	Up to 16×350Ω or 32×700Ω
Input Signal	0-10mV/V
A/D Rate	8 times/second
Protection	IP54
Relative Humidity	≤85% non-condensing
Wiring Method	RS232, Bluetooth, WiFi (optional)

Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326 0

Industrial Digital Weighing Indicator with Multi-Platform Input & Printer WI-326 1

Product Description

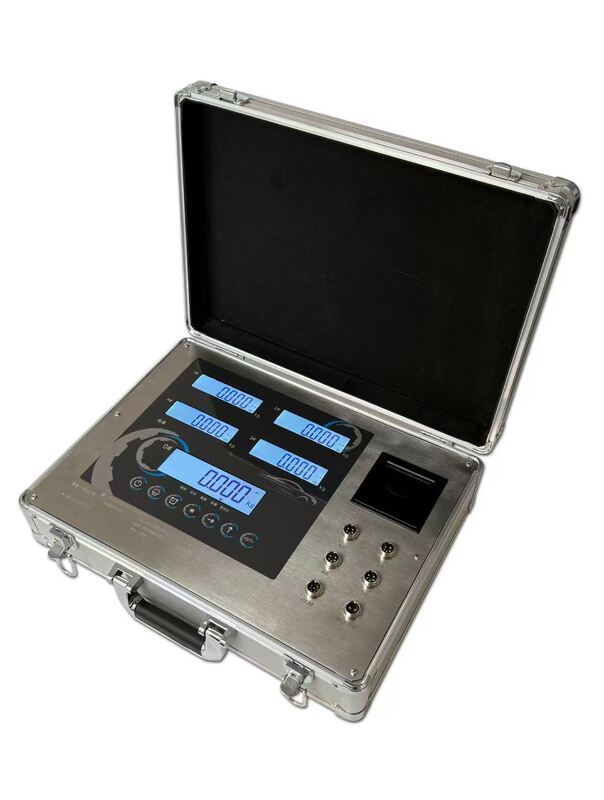

This industrial-grade digital indicator is engineered for dynamic and static weighing applications. It accepts input from up to 16 load cells and supports four independent platforms. With a built-in thermal printer, RS232 interface, and optional Bluetooth/WiFi, it is ideal for field use. The device is housed in a shock-resistant aluminum suitcase and features a rechargeable battery with 40-hour runtime. It supports both kg and lb units and includes multiple software modes for various axle configurations.

Advantages

Compatible with up to 16×350Ω or 32×700Ω load cells
IP54 protection against dust and water
Fast 8Hz A/D sampling rate
Memory function for retrieving past weigh records
Lightweight and portable design (6kg total)
Optional high-capacity aluminum platforms (up to 15T each)

Instruction

Connect the indicator to the load cell platforms.
Power on and select the weighing mode.
Perform zero calibration before use.
Weigh the vehicle or object and record results.
Use the print function or wireless transfer for data logging.
Charge the battery fully before long-term storage.
