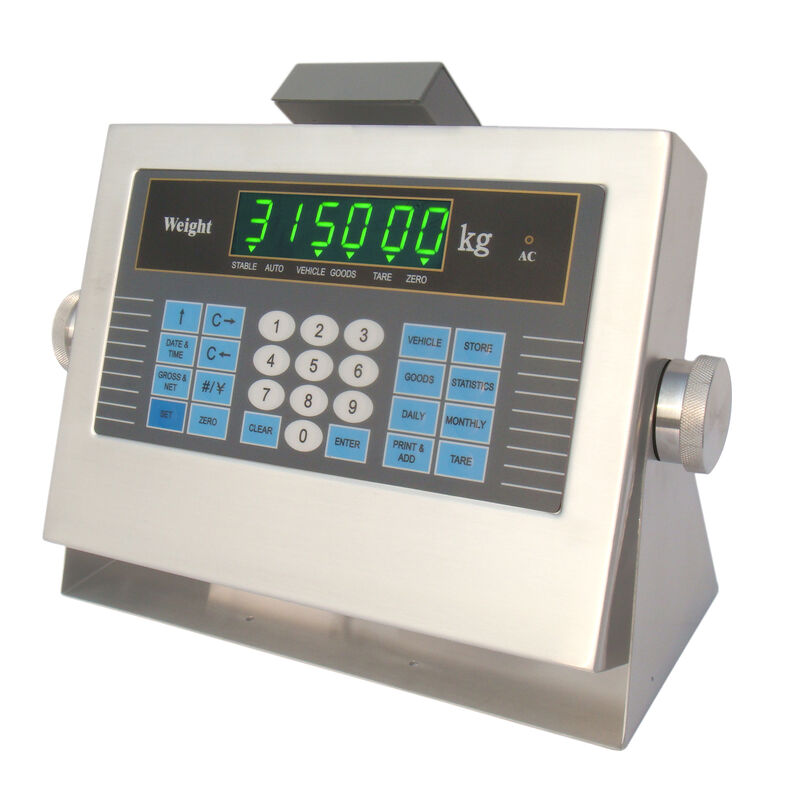

High-Capacity Indicator BXK315A6GBP – Advanced Data Management & Logging

Features

• 1. Engineered for reliability, this weighing indicator operates in temperatures from 0°C to 40°C.

  2. The indicator is safe for storage in environments ranging from -25°C to 55°C.

  3. Built for challenging conditions, this weighing indicator withstands relative humidity up to 85% non-condensing.

  4. Designed for large-scale systems, the indicator can drive up to 8x350Ω or 16x700Ω load cells.

  5. Maintenance efficiency is high, as the weighing indicator can be replaced without recalibration.

  6. Measurement accuracy is assured by the four-point calibration feature of this indicator.

  7. The weighing indicator includes a low battery warning and automatic power-off for protection.

  8. Commercial versatility is provided by the ability to store and recall up to 10 unit prices on this indicator.

  9. System safety is enhanced with a display lock when overload exceeds 130% FS on the indicator.

  10. For precision tasks, the accuracy of this weighing indicator can be increased ten times.

  11. Data integrity is secured with real-time shock detection and a programmable date lock on this indicator.

  12. Fleet management is streamlined, as the weighing indicator stores up to 200 vehicle numbers and tares.

  13. Comprehensive record-keeping is possible with storage for 1000 weighing records and reports on this indicator.

  14. The indicator classifies statistics by vehicle and goods number for detailed operational insights.

  15. Flexible reporting is enabled with daily and monthly statistical reports from the weighing indicator.

  16. Custom documentation is available with selectable fill-in form printing directly from this indicator.

  17. For high-volume printing, a parallel interface supports external 24-pin dot matrix printers via this indicator.

  18. Standard system integration is facilitated by an RS232 serial interface on the weighing indicator.

  19. Network connectivity can be expanded with an optional RS485 serial interface for this indicator.

  20. The weighing indicator offers selectable weight units (kg and t) for various industrial needs.

  21. On-site printing is made easy with the built-in micro printer featured in this all-in-one weighing indicator.

Dimensions(mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
