LED Weighing Indicator Accuracy Industrial Weight Indicator RS232

Name: LED Weighing Indicator Accuracy Industrial Weight Indicator RS232
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: H5000
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANZ

Model Number: H5000

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5~8days

Payment Terms: L/C, T/T, Western Union,paypal

Supply Ability: 10000pcs

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Industrial Weight Indicator, Weighing Indicator Accuracy, Weight Indicator RS232


Serial Port:	RS232	Dimension (LWH):	220×120×160mm
Unit Selection:	MV/V, Kg,kN, Nm,t	Housing:	Plastic
Load Cell Connection:	4wires Or 6 Wires Load Cells	Measuring Range:	±5.0mV/V
A/D Conversion Speed:	Highest 4800 (18bit)	Cable From Indicator To Load Cells:	<=50m
Resistance Of Load Bridge:	>100OHM	Speed Of Output:	400,200,120,50,25,12.5,7.5Hz
Sensitivity:	2.0mV/V	Accuracy:	1/100000

Serial Port:	RS232
Dimension (LWH):	220×120×160mm
Unit Selection:	MV/V, Kg,kN, Nm,t
Housing:	Plastic
Load Cell Connection:	4wires Or 6 Wires Load Cells
Measuring Range:	±5.0mV/V
A/D Conversion Speed:	Highest 4800 (18bit)
Cable From Indicator To Load Cells:	<=50m
Resistance Of Load Bridge:	>100OHM
Speed Of Output:	400,200,120,50,25,12.5,7.5Hz
Sensitivity:	2.0mV/V
Accuracy:	1/100000

LED Weighing Indicator Accuracy Industrial Weight Indicator RS232

Accurate LED RS232 Weighing Indicator For High Precision Data Acquisition(H5000)

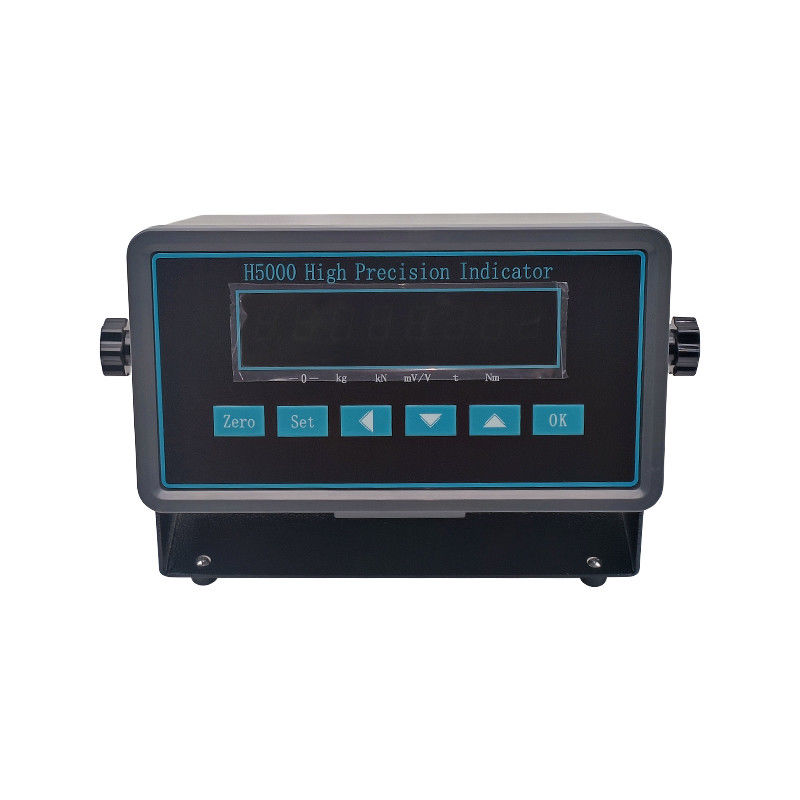

Operation panel:

LED Weighing Indicator Accuracy Industrial Weight Indicator RS232 0

Key Features:

With rechargable battery

two calibration modes :manual calibration mode,automatic calibration mode

0~9 total 10 logical channels to correspond to different sensors

the acquisition reaches ±8 million yards

Unit selection as mV/V, kg,kN, Nm,t

With large LED display and plastic housing

Communication port, used for communication from indicator to computer, support custom high-speed protocol, Modbus and so on

High precison with good stability

High speed of sampling

Importing 24 bits modulus chips and special modular ground line seperated design to guarantee good stability.

Can be connected with 4 wires or 6 wires load cells with big measuring range

Mainly used for high precision data acquisition and verification assessment

Datasheet:

MODEL	UNIT	SPECIFICATIONS
Accuracy		1/100000
Resistance of Load Bridge	OHM	>100
Sensitivity Measuring Range	mV/V mV/V	2.0 ±5.0
Highest Resolution	Bits	24bit(50Hz)
A/D Conversion Speed	Samples/second	Highest 4800 (18bit)
Speed of Output	Hz	400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital Filtering	Hz	120,40,18,8,4,2,1,0.5,0.25
Excitation Voltage of Load Bridge	v	±10
Cable from Indicator to Load cells	m	<=50
Cable of communication	m	<=15
Linearity	%	±0.002
Temperature effect by 10 oC	ppm/10 ℃	10 ppm/10 oC
Communication port		Isolated RS232
Communication Protocol		Modbus
PC Software	V4.0	Digital Load Cells Measuring
Linear correction Points		10 setting points
Baud rate selection		9600 to 115200
Current consumption	mA	50
Operation Temperature	℃	-10...+40
Using Temperature	℃	-20...+60
Stocking Temperature	℃	-20...+60
Dimension (LWH)	mm	220×120×160

Control software:

LED Weighing Indicator Accuracy Industrial Weight Indicator RS232 1
