High Precision Weighing Indicator Digital Scale Indicator Display 24bit 50Hz

Name: High Precision Weighing Indicator Digital Scale Indicator Display 24bit 50Hz
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: H5000
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANZ

Model Number: H5000

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Packaging Details: Standard cartoon boxes:

Delivery Time: 5~8days

Payment Terms: L/C, T/T, Western Union,paypal

Supply Ability: 10000pcs

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                High Precision Weighing Indicator, Digital Scale Indicator, Scale Indicator Display


Accuracy:	1/100000	Resistance Of Load Bridge:	>100OHM
Sensitivity:	2.0mV/V	Measuring Range:	±5.0mV/V
Load Cell Connection:	4wires Or 6 Wires Load Cells	Highest Resolution:	24bit(50Hz)

Accuracy:	1/100000
Resistance Of Load Bridge:	>100OHM
Sensitivity:	2.0mV/V
Measuring Range:	±5.0mV/V
Load Cell Connection:	4wires Or 6 Wires Load Cells
Highest Resolution:	24bit(50Hz)

High Precision Weighing Indicator Digital Scale Indicator Display 24bit 50Hz

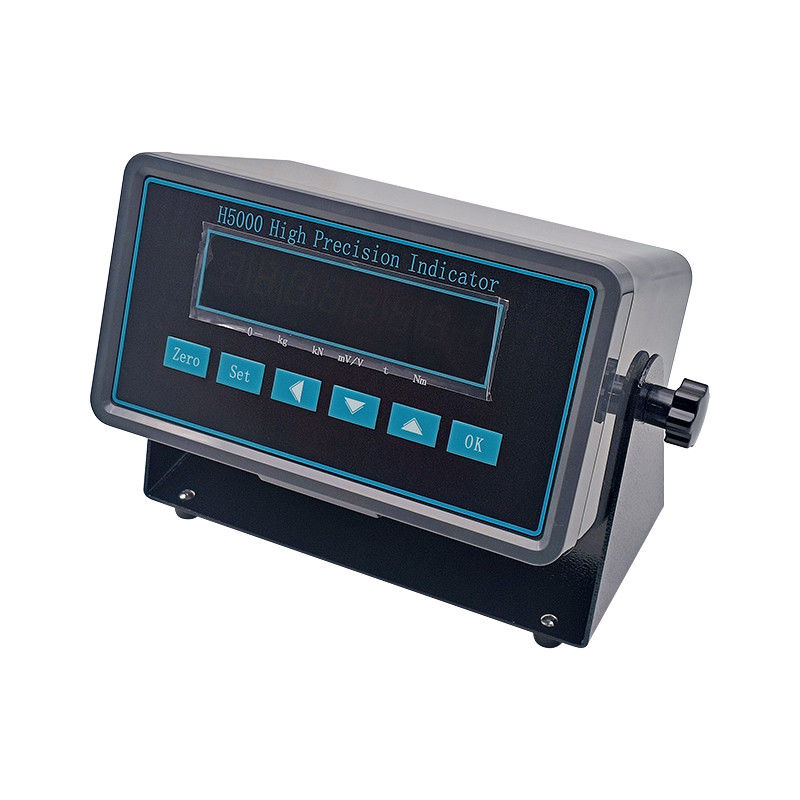

High Precision Weighing Indicator With High Speed (H5000)

Operation panel:

High Precision Weighing Indicator Digital Scale Indicator Display 24bit 50Hz 0

Overview:

H5000 series high precision measuring indicator using synchronous tracking of power and reference power with importing 24-bit modulus chip and a unique modular ground line separation design to make the measurement to achieve real ±2 million yards, sample speed up to ± 800 million yards. Plus or minus Alternating power supply technology will effectively eliminate the drift of zero point from charge accumulation.This indicator obtains high accuracy and good stability. It is suitable for the measurement of strain gauge load cells with the highest resolution of 7.5 bits, the

range of -5.0 ~ 5.0mV / V, the minimum resolution of 0.001μV / V, the linearity of 0.0007% . This product is widely used in high-precision force transfer, load cells production testing and verification assessment and other fields.

Datasheet:

MODEL	UNIT	SPECIFICATIONS
Accuracy		1/100000
Resistance of Load Bridge	OHM	>100
Sensitivity Measuring Range	mV/V mV/V	2.0 ±5.0
Highest Resolution	Bits	24bit(50Hz)
A/D Conversion Speed	Samples/second	Highest 4800 (18bit)
Speed of Output	Hz	400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital Filtering	Hz	120,40,18,8,4,2,1,0.5,0.25
Excitation Voltage of Load Bridge	v	±10
Cable from Indicator to Load cells	m	<=50
Cable of communication	m	<=15
Linearity	%	±0.002
Temperature effect by 10 oC	ppm/10 ℃	10 ppm/10 oC
Communication port		Isolated RS232
Communication Protocol		Modbus
PC Software	V4.0	Digital Load Cells Measuring
Linear correction Points		10 setting points
Baud rate selection		9600 to 115200
Current consumption	mA	50
Operation Temperature	℃	-10...+40
Using Temperature	℃	-20...+60
Stocking Temperature	℃	-20...+60
Dimension (LWH)	mm	220×120×160

Control software:

High Precision Weighing Indicator Digital Scale Indicator Display 24bit 50Hz 1
