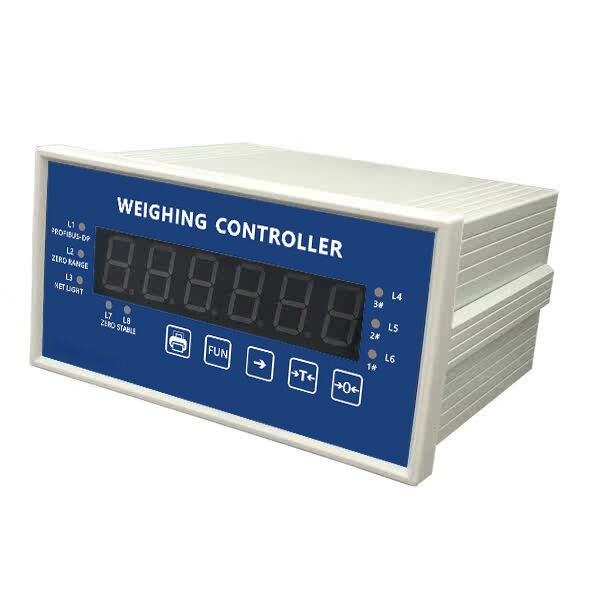

Multi-Protocol Weighing Controller BXK315A2-7 – Precision & Connectivity

Features

• 1. This precision weighing controller features ΣΔ style A/D conversion at 10 rounds per second.

  2. The controller delivers an A/D conversion resolution better than 1 in 1,000,000.

  3. Offering flexible speed, this weighing controller operates at 10 or 80 conversions per second.

  4. Powered by 5V, the weighing controller drives up to 4x350Ω or 8x700Ω load cells.

  5. For process integration, the controller provides a standard 4-20mA analog current output.

  6. An additional 0-10V analog voltage output is available from this versatile controller.

  7. The weighing controller supports major industrial protocols: Modbus RTU, Profibus-DP, and Modbus TCP.

  8. Control capabilities are expanded with 8 relay outputs and 4 opto-isolated inputs on this controller.

  9. This reliable weighing controller operates on a universal AC100-240V power supply.

  10. Data is clearly shown on a 6-digit, 0.8-inch high-brightness LED display on the controller.

  11. Designed for space-saving installation, the compact controller measures 160x83x146 mm.

  12. The controller runs specialized software, with Version 5.01 for Modbus RTU and Version 4.01 for Profibus-DP.




Dimensions(mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
