PR6221 Load Cell Canister Compression Load Cell For Weighbridge

PR6221 Analog Weighbridge Canister Load Cell Made Of Stainless Steel -BP-7

Product Description:

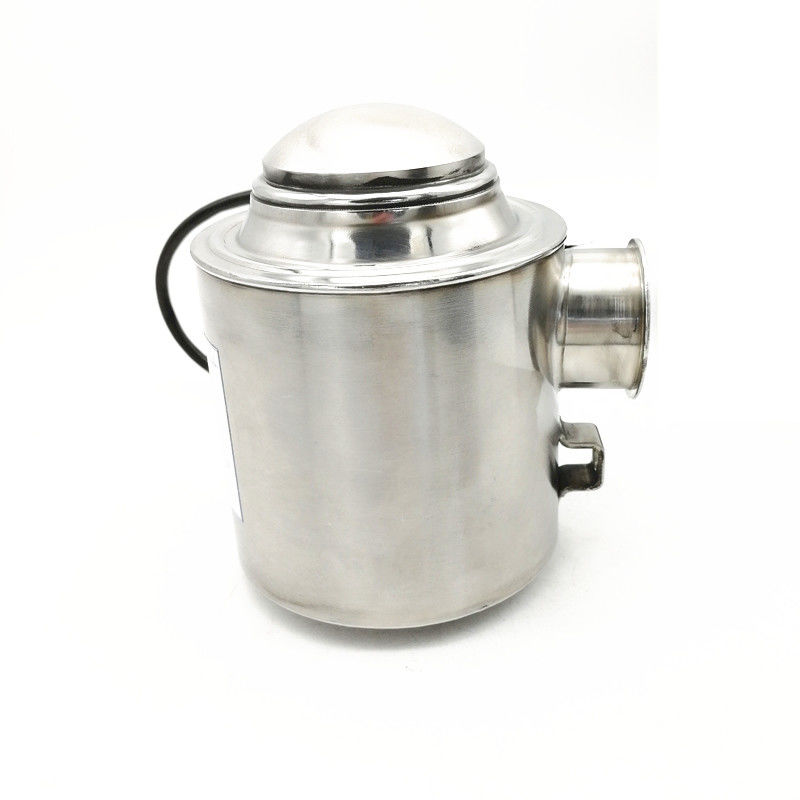

The BP-7 canister load cell is specially designed for use in truck scales. Combined with the installation kits, the load cell could balance the movements caused by mechanical or thermal expansion. It can be used under extreme operating conditions thanks to its stainless steel construction in hermetically sealed design. 1.55 percent of the applied vertical load gets produced as a horizontal restoring force for every milimeter that the top of the load cell moves away from the vertical axis. The high quality of this load cell guarantees precise results and long lifespan. It features a robust 16m long TPE sheath cable with diameter of 5mm.

Features and Applications:

• Heavy duty column type load cell
• With robust body and compact structure in stainless steel construction
• With IP 68/69k protection( high pressure cleaning)
• Cable specification:16m long TPE sheath cable with diameter of 5mm
• Long serving life due to the hermetically sealed design
• 100% compatible with PR6221
• Exclusively for use on road weighbridges.

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
