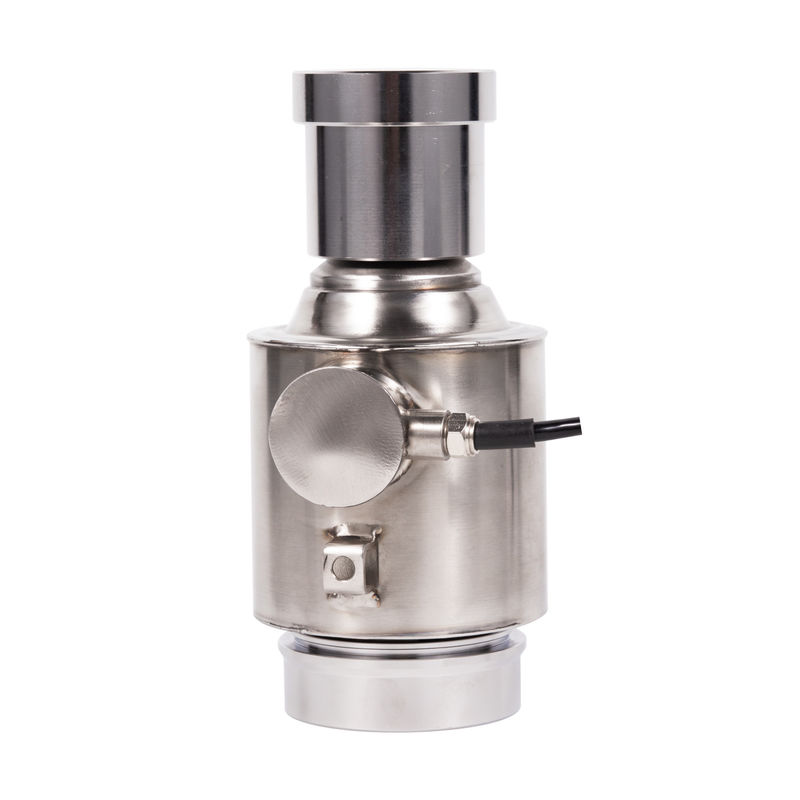

20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel

Name: 20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: BP-7
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Model Number: BP-7

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                20 Ton Load Cell, load cell pr6221, Truck Scale Load Cell


Pattern:	Column Cylinder Type	Application:	300%F.S.
Output Signal Type:	Analog Type	Accuracy Class:	C3
Cable Size:	Φ5.4×16000mm	IP Grade:	IP68
Temp.effect On Output:	<20PPM/ºC Of Applied Load	Temp.effect On Zero:	<20PPM/ºC Of Applied Load
Recommended Excitation:	10V DC/AC	Maximum Excitation:	20V DC/AC

Pattern:	Column Cylinder Type
Application:	300%F.S.
Output Signal Type:	Analog Type
Accuracy Class:	C3
Cable Size:	Φ5.4×16000mm
IP Grade:	IP68
Temp.effect On Output:	<20PPM/ºC Of Applied Load
Temp.effect On Zero:	<20PPM/ºC Of Applied Load
Recommended Excitation:	10V DC/AC
Maximum Excitation:	20V DC/AC

20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel

Pr6221 20t 30t 50t Truck Scale Load Cell with Stainless Steel and IP68 Protection-BP-7

Product Description:

Product Name: WeighBridge Load Cell Replace Sartorius PR6221 Truck scale Load Cells
Model: BP-7
Material: Stainless Steel
Cpacity: 20t, 30t, 50t

Features & Applications:

Ideally suited to use in weighbridges
Standardized, maintenance-free, extremely compact design
Extremely robust design in hermetically sealed stainless steel housing
Special strain-gauge technology for significantly improved lightning protection
High overload range (up to 150 %)
100 % compatible with PR 6221
Reaches stability quickly which ensures short weighing times
High EMC compatibility (10 V/m)
Additional reliability thanks to diagnostic function

Specifications:

Capacity	20t, 30t, 40t, 50t
Accuracy class	C3
Rated output	1.0±0.01mV/V
Rated output	2.0±0.01mV/V
Zero balance	<±1%F.S.
Non-linearity	<±0.02%F.S.
Hysteresis	<±0.01%F.S.
Repeatability	<±0.01%F.S.
Creep(30min)	≤0.02%F.S.
Temperature effect on sensitivity	<20PPM/ºC of Applied Load
Temperature effect on zero	<20PPM/ºC of Applied Load
Input resistance	1080±10Ω/385±10Ω
Output resistance	1010±5Ω/350±5Ω
Insulation resistance	≥5000MΩ/100VDC
Recommended excitation	10V DC/AC
Maximum excitation	20V DC/AC

Dimension(MM):

20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel 0

Load Direction:

20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel 1

Wiring:

20 Ton Load Cell Pr6221 Truck Scale Load Cell With Stainless Steel 2

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
