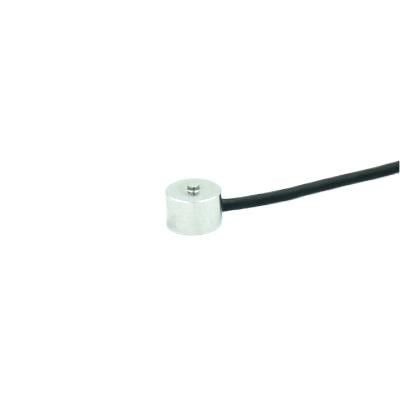

Subminiature Button Load Cell 20N-1000N Compression Load Cell Scale

Product Description:

The CF801 micro force transducer can be used to measure static compressive force. Nominal forces ranging from 20N to 1kN are available as well as variable cable lengths and, on request, Transducer Electronic Data Sheet. This is a high accuracy load cells with mini size.
The compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installed in existing systems. Its extremely compact design(outside diameter: 8mm with height as 6mm) further facilitates the integration.
Providing 0.5% accuracy, this offers higher precision than its predecessor. The force sensor is based on high strain gauge technology. Force is applied via a special load application point.
Brans force transducer offers IP66 protection. Precise measurement results are guaranteed even in adverse environments thanks to the hermetically sealed housing from stainless steel and rugged cable.Compact, precise, rugged - these characteristics make our load button highly versatile. Possible fields of application include:
Cost-effective test benches for a wide range of applications
Control and monitoring of production processes
Measurement tasks in development, when other sensors are too big, e.g. for measuring braking forces directly in the brake caliper.Furthermore, the compressive force transducer adapts to the application - cable lengths and connectors are variable. If a plug version is selected, C9C can also be fitted with TEDS. The sensor's identification number will be automatically detected and the amplifier automatically configured.

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
