Low Profile Pancake Style Load Cell Compression And Tension Load Cells

Name: Low Profile Pancake Style Load Cell Compression And Tension Load Cells
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: TCF-732
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Model Number: TCF-732

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Pancake Style Load Cell, Tension Load Cells, load cell compression and tension


Shape:	Pancake	Wiring:	5 Wires
Specification:	12020(DH)	Output Signal Type:	Analog Type
Applied Load:	0.1/0.2/0.5/1/2/3/5/10T	Sensitivity:	1.5±10%mV/V
IP Class:	IP66	Weight Approx.:	0.1kg

Shape:	Pancake
Wiring:	5 Wires
Specification:	12020(DH)
Output Signal Type:	Analog Type
Applied Load:	0.1/0.2/0.5/1/2/3/5/10T
Sensitivity:	1.5±10%mV/V
IP Class:	IP66
Weight Approx.:	0.1kg

Low Profile Pancake Style Load Cell Compression And Tension Load Cells

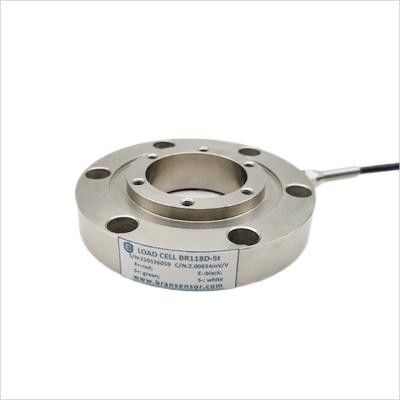

Low Profile Pancake Type Compression and Tension Load Cell-TCF-732

Product Description:

Brans TCF732 pancake type load cell is intended for use in compression and tension applications,widely used for measuring calmping forces, bolt loading and overload monitoring. Crafted in stainless steel with IP 66 protection,the TCF732 features a through-hole design fit for easy installation and maintenance. The available capacity ranges from 0.1t to 10t and It offers accuracy from 0.25% to 0.5% with high overload capability for optimum performance.

Features & Applications:

Pancake Compression and Tension Load Cell
Through-hole design
Easy to maintain and replace
Outer diameter120mm, 20mm as height
Fully-welded stainless-steel construction
For use as a load washer to measure bolt loading, clamping forces, and overloads

Specifications:

Capacity	0.1/0.2/0.5/1/2/3/5/10T
Rated output	1.5±10%mV/V
Zero balance	± 0.05mV/V
Non‐linearity	≤0.1%F.S.
Hysteresis	0.50%F.S.
Repeatability	0.050%F.S.
Creep(30min)	0.10%F.S.
Temp.effect on output	0.05%F.S./10ºC
Temp.effect on zero	0.05%F.S./10ºC
Input impedance	700±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5V
Maximum excitation	10V
Compensated temp range	‐10~60ºC
Operation temp range	‐20~80ºC
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	φ4×4000mm
Weight approx.	0.1kg
Material	Stainless Steel
IP Class	IP66

Dimension(MM):
