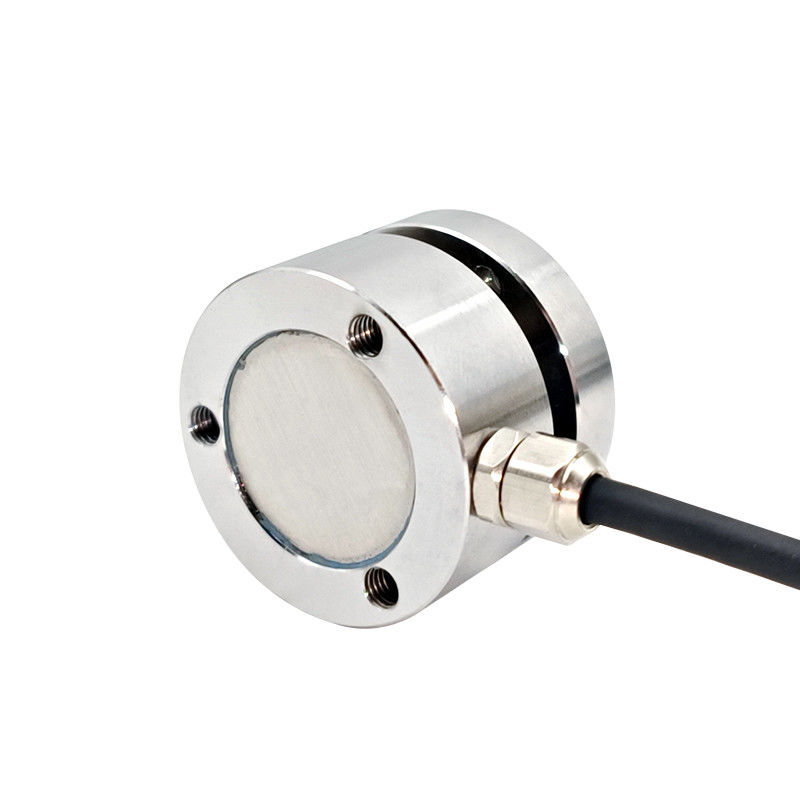

5kN Load Cell Compression Load Cell Sensor With Small Dimension

Name: 5kN Load Cell Compression Load Cell Sensor With Small Dimension
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: CF-813
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BRANS

Model Number: CF-813

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Delivery Time: 5-7 work days

Payment Terms: L/C, T/T, Western Union,Paypal

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                5kN Load Cell, Compression Load Cell Sensor, compression load cells for sale


Major Application:	Automated Control,fixture Clamping Force Measurement	Hysteresis:	0.05%F.S.
Installation:	Flange Mounted	Signal Output:	Analog Type
Zero Balance:	±0.05mV/V	Specification:	M3*3
Capacity:	IP67

Major Application:	Automated Control,fixture Clamping Force Measurement
Hysteresis:	0.05%F.S.
Installation:	Flange Mounted
Signal Output:	Analog Type
Zero Balance:	±0.05mV/V
Specification:	M3*3
Capacity:	IP67

5kN Load Cell Compression Load Cell Sensor With Small Dimension

0.5/1/2/3/5kN Flange Type Compression Load Cell With Small Dimension -CF-813

Product Description:

Crafted in stainless steel with IP67 protection,the CF-813 is a miniature flange compression load cell special for use in automated control,fixture clamping force measurement, load distribution analysis, hand press force verification, and so on. It is tested loaded to150% of normal rated load and has 0.5% non-linearity.The miniature dual-plane design makes possible this flange type load cell easy installation and small deflection with compact structure.

Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.

To make sure providing the best solution, the load cell can be adapted to meet customer requirements.

Specifications:

Capacity				0.5/1/2/3/5kN
Sensitivity				1.5.±20%mV/V
Zero balance				±0.05mV/V
Non-linearity				0.05%F.S.
Hysteresis				0.05%F.S.
Repeatability				0.20%F.S.
Creep(30min)				0.10%F.S.
Temp.effect on output				0.05%F.S./10°C
Temp.effect on zero				0.05%F.S./10°C
Input impedance				800-1100Ω
Output impedance				800-1100Ω
Insulation				≥ 5000MΩ/100VDC
Recommended excitation				5-15V
Maximum excitation Voltage				20V
Compensated temp range				-10-60°C
Operating temperature range				-20-80°C
Safe load limit				150%F.S.
Breaking load				200%F.S.
Cable size				Ф3 × 4000mm
Weight approx.				0.1kg
Material				Stainless Steel
IP Class				IP67

Dimension(MM):

Load Direction:

Wiring:

5kN Load Cell Compression Load Cell Sensor With Small Dimension 2

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
