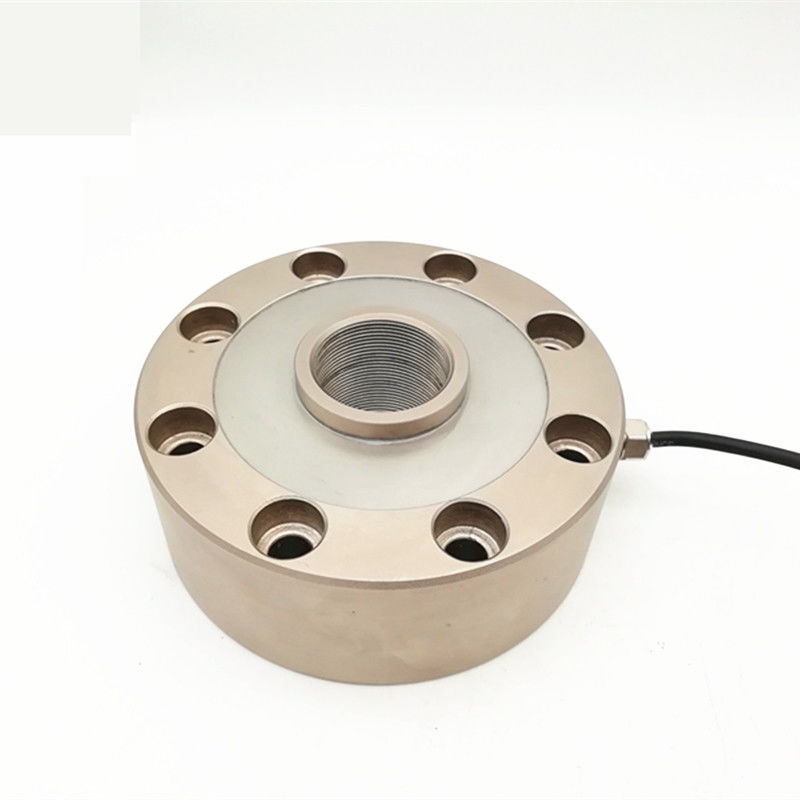

0.2t-60t Pancake Style Load Cell Stainless Steel Load Cell 60 Ton

Big Capacity Pancake Type Load Cell Made Of Stainless Steel For 0.2t-60t Weighing-TCF-733

Product Description:

 Brans's all-welded, stainless steel, low profile, pancake load cells feature either bonded foil or foil strain gauge technology measuring loads from 0.2t up to 60t with accuracy of 0.03 %. This wheel type load cells choose from compression only or tension/compression models to fit your particular application. Fatigue-rated models are available that are designed for applications, such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. Select models are also available as intrinsically safe options for use in hazardous locations. Please call us to discuss if you need special modifications or a custom design.



Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.

To make sure providing the best solution, the load cell can be adapted to meet customer requirements.


Features & Applications:


• Low profile, pancake style, wheel type
• All-welded, stainless steel construction and double diaphragm design
• Load ranges from 0.2t to 60t
• Low sensitivity to extraneous loads
• Fatigue-rated and intrinsically safe options are available

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
