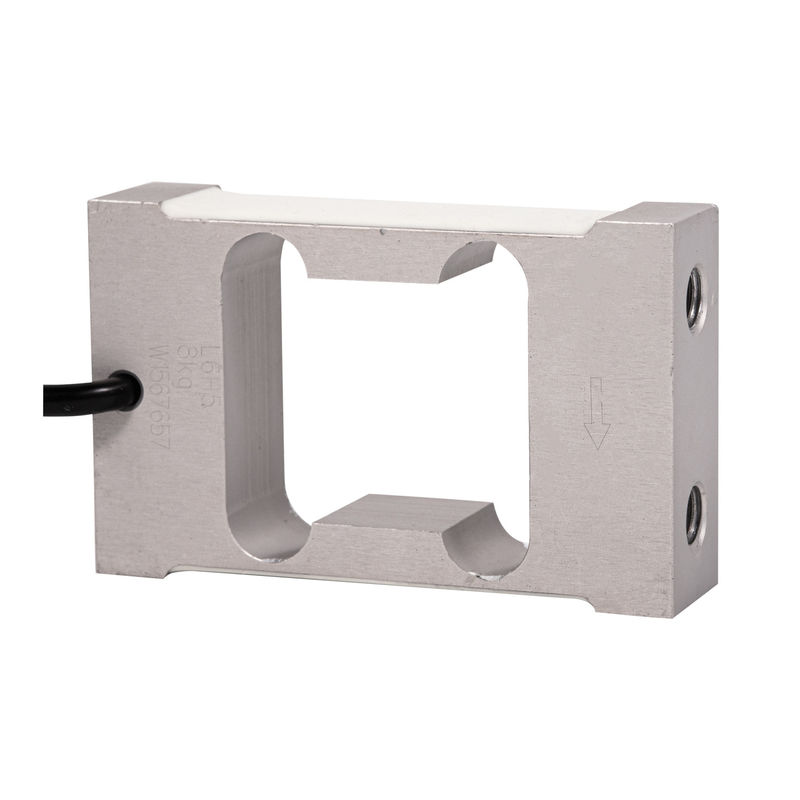

1kg Weight Sensor Load Cell Small 1kg Load Cell Single Point Load

Aluminum Alloy IP 65 Single Point Load Cell For 1kg-30kg Weighing Applications -WL-119

Product Description:

The WL-119 side mounted single point load is developed for applications with a load range from 1kg to 30kg. Making use of the strain gauge technology, the weight sensor WL-119 offer good stability and high accuracy while fulfilling its weighing tasks. It is designed for dynamic weighing applications with compact structure and platform size up to 200mm*200mm. The load cell has it right side rigidly mounted with screws while other side for load. Available in three different dimensions(you may refer to the pictures below),the load cell WL-119 could be found in applications such as food packaging machines,electronic scales,auto filling machines and so on.

Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.

To make sure providing the best solution, the single point load cell can be adapted to meet customer requirements.

Features and Applications:

• Side mounted single point load cell
• Aluminum alloy construction
• Developed for dynamic weighing
• With compact structure ,easy to install
• three different dimensions available
• Mainly used for food packaging machines,electronic scales,auto filling machines

Specifications:

Dimension(MM):

                                4/5/6/8/10/20/30kg

                                                    1/2/3/5kg

                                 10/15/20/30kg

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
